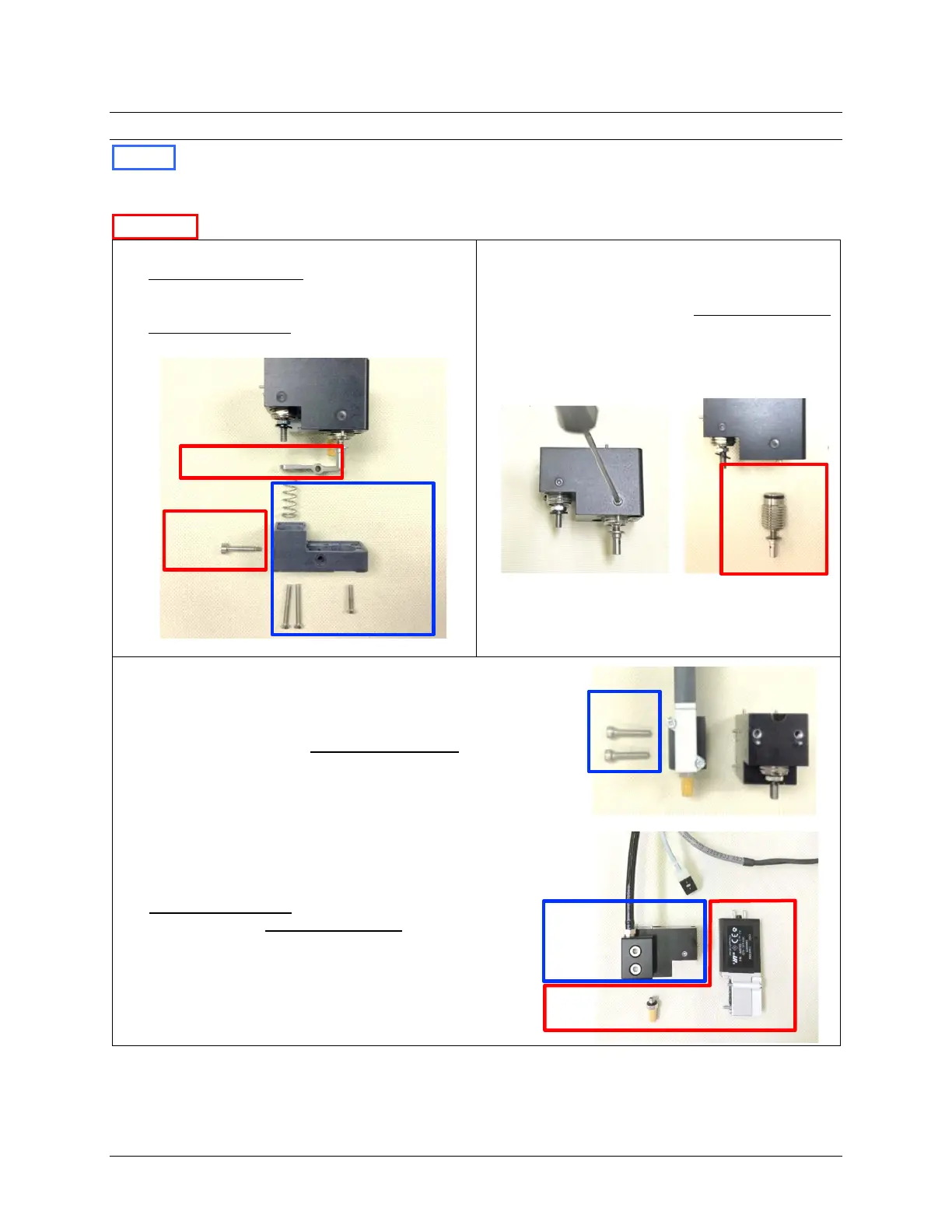

2.6 Remove Spacer Assembly
KEEP these parts and screws to set aside and reinstall. A checklist is provided in
section 2.7.
JK-9500 kit replaces these parts.
2.6.1 Remove the Spacer
 Remove and set aside the spacer screws
(#1 PH), the nylon spacer, and the automatic
shutoff spring.
 Remove and discard the shoulder bolt (2 mm
hex) and the lever.
2.6.2 Remove the Air Cylinder
 Use the 2 mm hex driver to loosen the
setscrew that locks the main air cylinder.
 Use the 13 mm wrench to remove and discard
the air cylinder.
2.6.3 Remove the Air Valve Mount and Silencer
 Use the 3 mm driver to remove and set aside the screws
securing the valve mount to the jet body.
 If still attached, use a #1PH to loosen the screw on the jet
cable connector.
 Loosen screws attaching the air valve to the valve mount.
Remove and discard the air valve.
 Use a wrench to remove and discard the muffler.
DISCARD
DISCARD
KEEP
DISCARD
DISCARD
KEEP
KEEP
