1. Required Tools and Parts
For optimal jet performance, it is suggested to perform periodic preventive maintenance.
These HM-2600 jet maintenance kits are available for this purpose:
 BK-2001: Replaces just the heater block bushing, jet spring, washer, and heater
seal.
 HK-2600: Replaces the heater block assembly (heater block with bushing and
cable assembly). Also includes the jet spring, washer and heater seal.
 JK-9500: Replaces the jet hammer cylinder, lever, shoulder bolt, main air valve,
muffler, and heater block assembly.
This document describes procedures for installing the HM-2600 jet maintenance kits.
Whenever the jet hammer spring is removed, as in these maintenance kits, the jet
hammer gap must be set before dispensing can proceed. The gap set fixture and
specific tools required for this procedure are included in the Advanjet Jet Maintenance
Kit (P/N JKT-2600).
1.1 Maintenance Kits

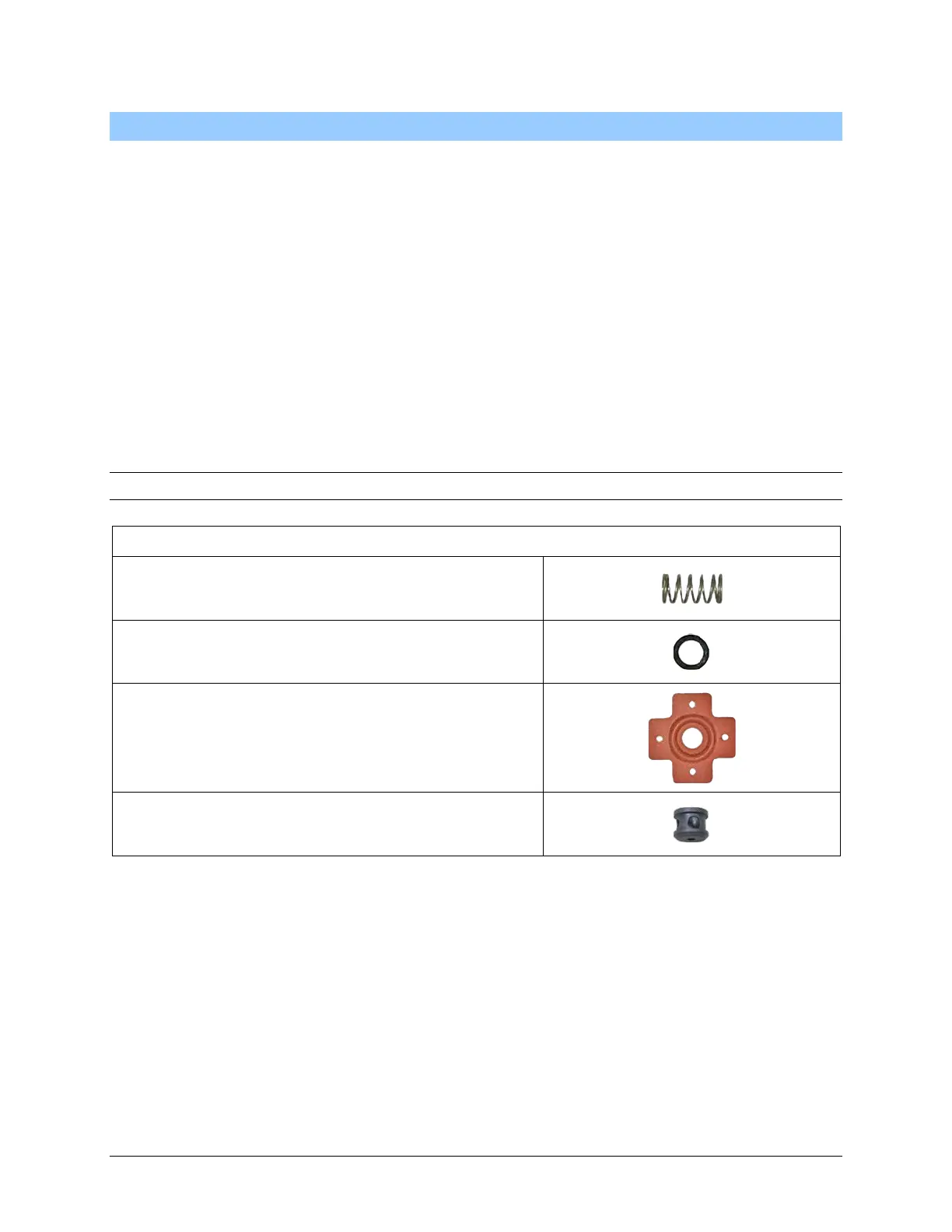

1.1.1 Bushing Kit (P/N BK-2001)
JET SPRING P/N 60-2102
WASHER P/N 60-2116
HEATER SEAL P/N 03-2261-00
BUSHING P/N 03-2162-00
