Relay Card Diagram

System Card Wiring

Units are provided with all low signal wires (probe, water meter, flow …) pre-wired with

labeled cables coming out of the controller. If it is desirable to wire directly to the system

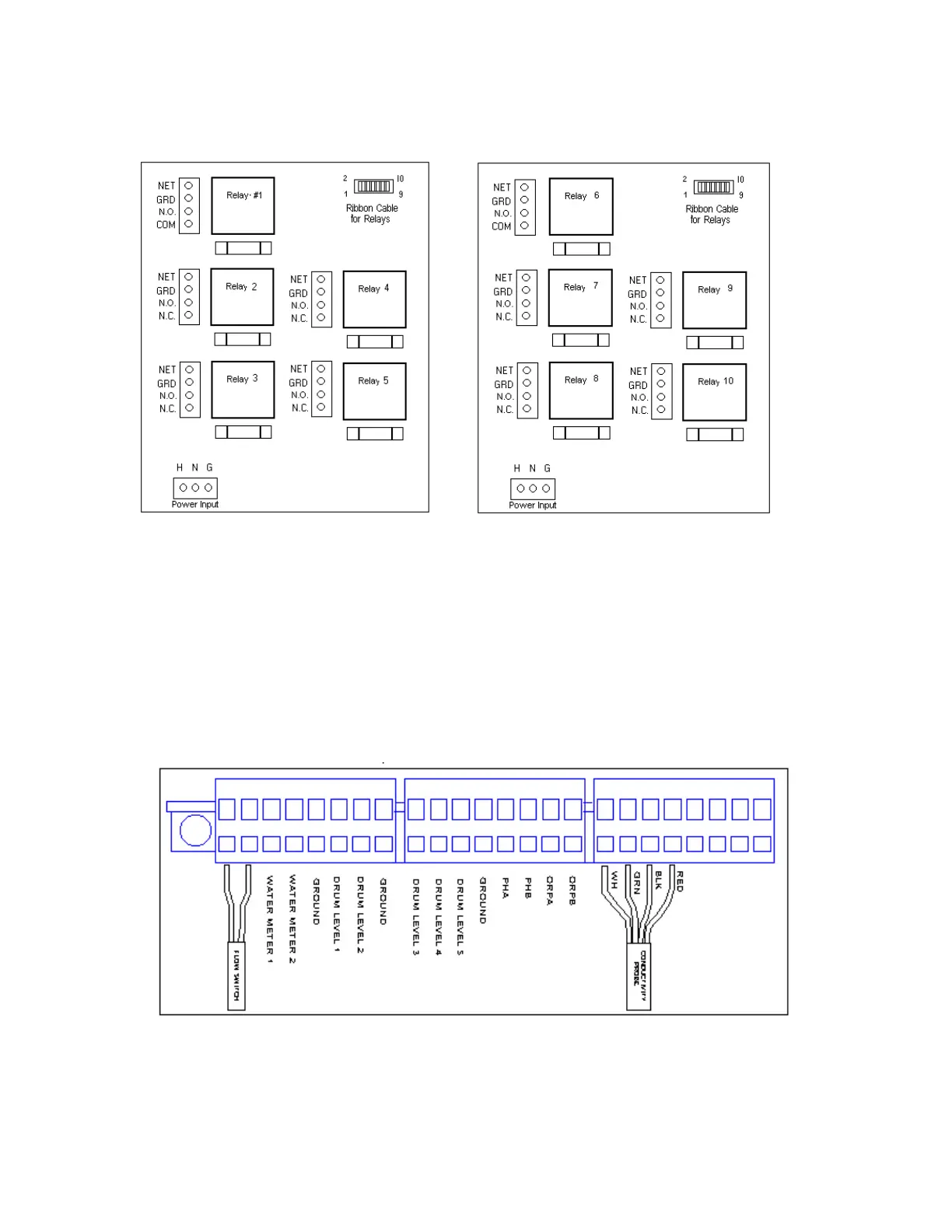

cards the following diagram indicates all connection for each system card.

☼

WARNING: This procedure is not recommended since it requires removal of the

front panel.
