Advantage Controls MegaTron Series - Boiler Electrode Installation

pH and/or
ORP Probe
Conductivity Probe
TE-4A PE-2 or OE-2

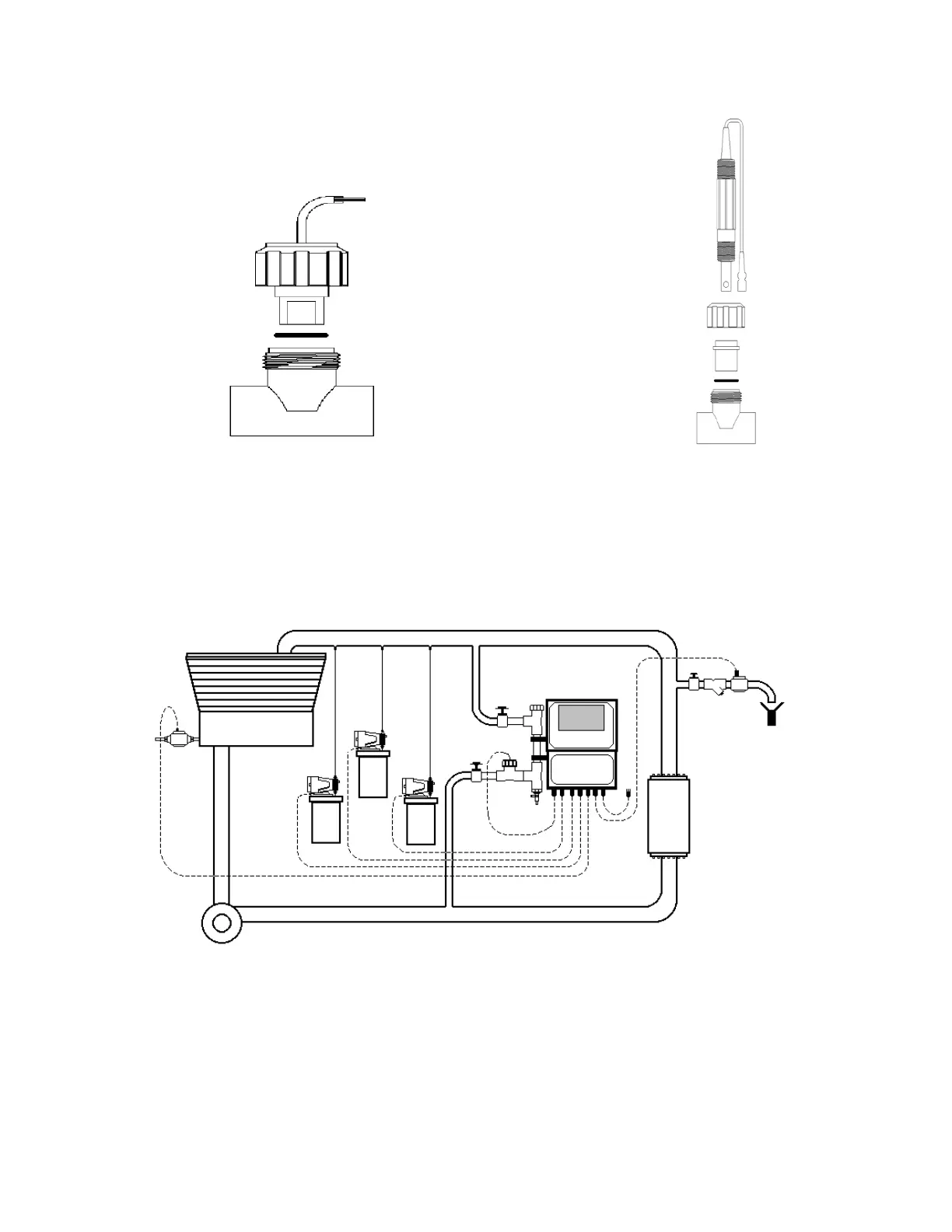

Typical Cooling Tower Installation Diagram
B. Boiler
Standard boiler electrodes (part # BE-4BC) have a 1” MNPT stainless steel bushing and
are supplied with a 1”FNPT cross designed for mounting in the skimmer (surface)
blowdown line. Sampling of the boiler’s water can be achieved using one of two typical
plumbing configurations (continuous sampling or timed and/or hold sampling). For a
