Chapter 2 Getting Started
2.4 Connecting Hardware
In this instruction, it will explain how to find a proper location for your Modbus
Gateways, and how to connect to the network, hock up the power cable, and connect
to the ADAM-4572 and EKI-122X series.
2.4.1 Choosing the Location
Due to thier innovative design, ADAM-4572 and EKI-122X series can be:
 Fixed to a panel mount
 Fixed to a DIN-rail
Panel/Wall Mounting
The ADAM-4572 and EKI-122X serie can be attached to a wall using the included
metal brackets. Each bracket comes with four screws. You can install the Modbus
Gateways firmly via the components, please see the figures below.

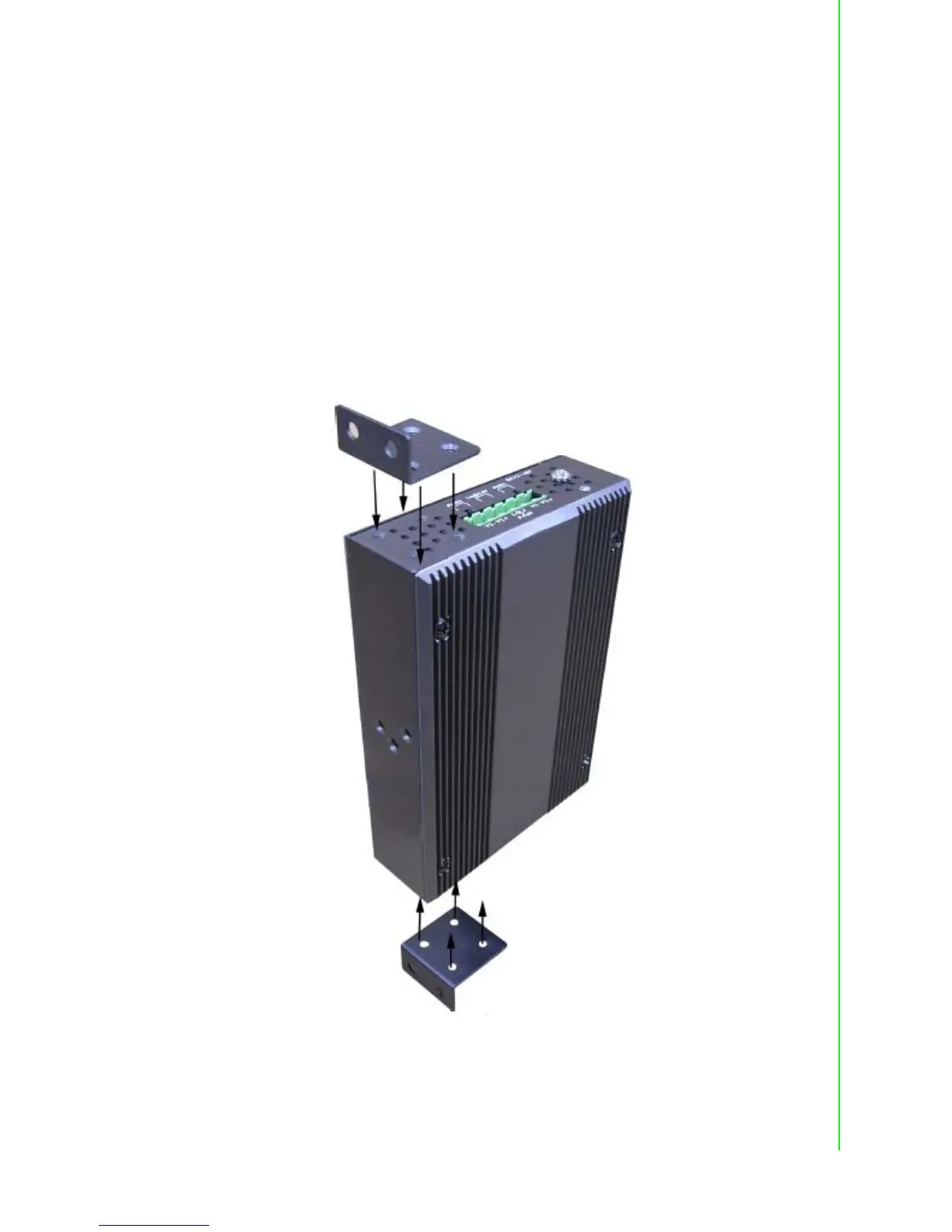

Figure 2.27 Combine the Metal Mounting Kit
