27 ADAM-4572 & EKI-122X Series User Manual
Chapter 2 Getting Started
DIN-rail Mounting
The ADAM-4572, EKI-122X series can be mounted on a standard DIN-rail. The DIN-
rail kit is screwed on the Modbus data gateway when out of factory. If the DIN-rail kit
is not screwed on the ADAM-4572, EKI-122X series, please screw the DIN-rail kit on
the Modbus data gateway first.

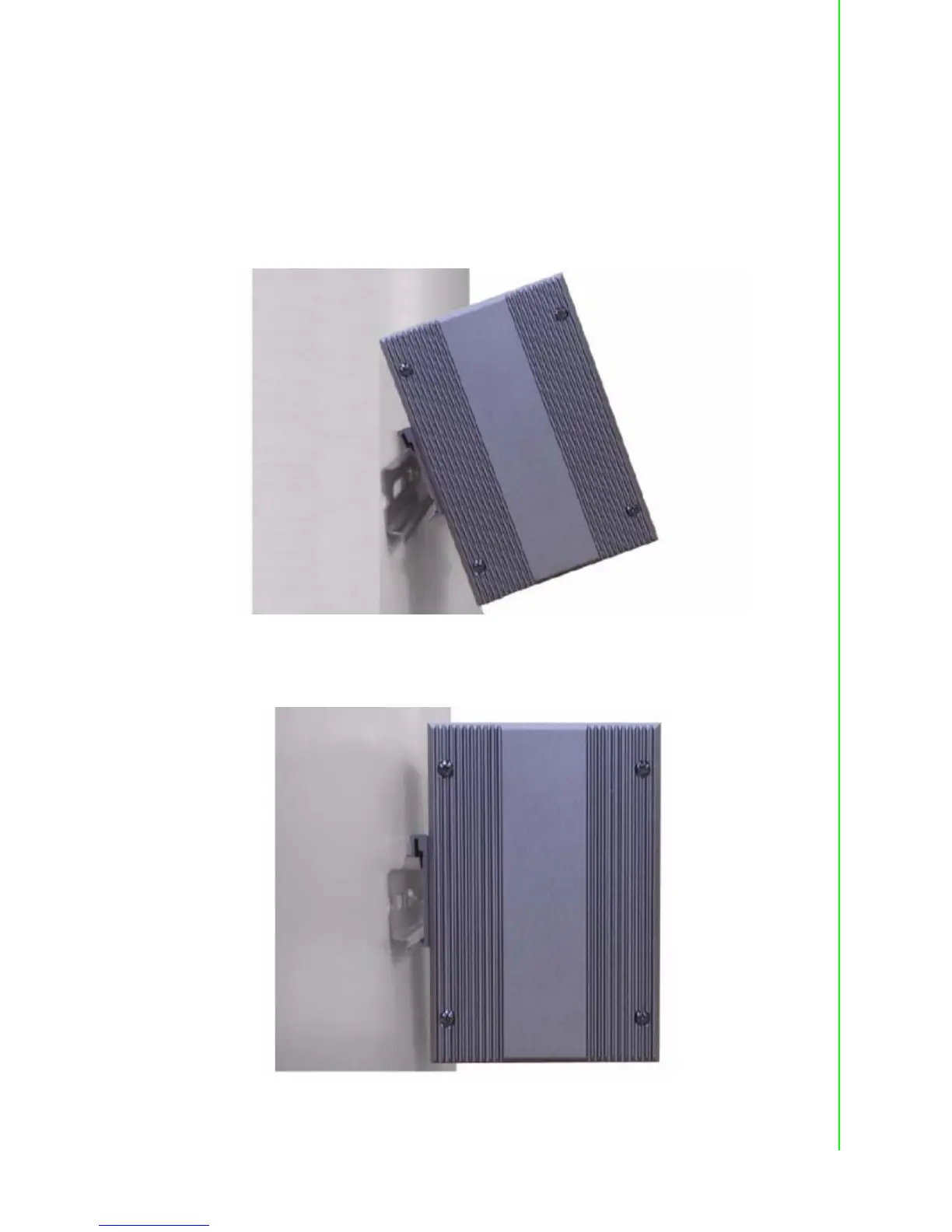

First, hang the Modbus Gateways to the DIN-rail with angle of inclination. See below
figure.
Figure 2.30 DIN-rail Step 1
Then, let the Modbus Gateways down straight to slide over the rail smoothly.
Figure 2.31 DIN-rail Step 2
