ADAM-6300 User Manual 12

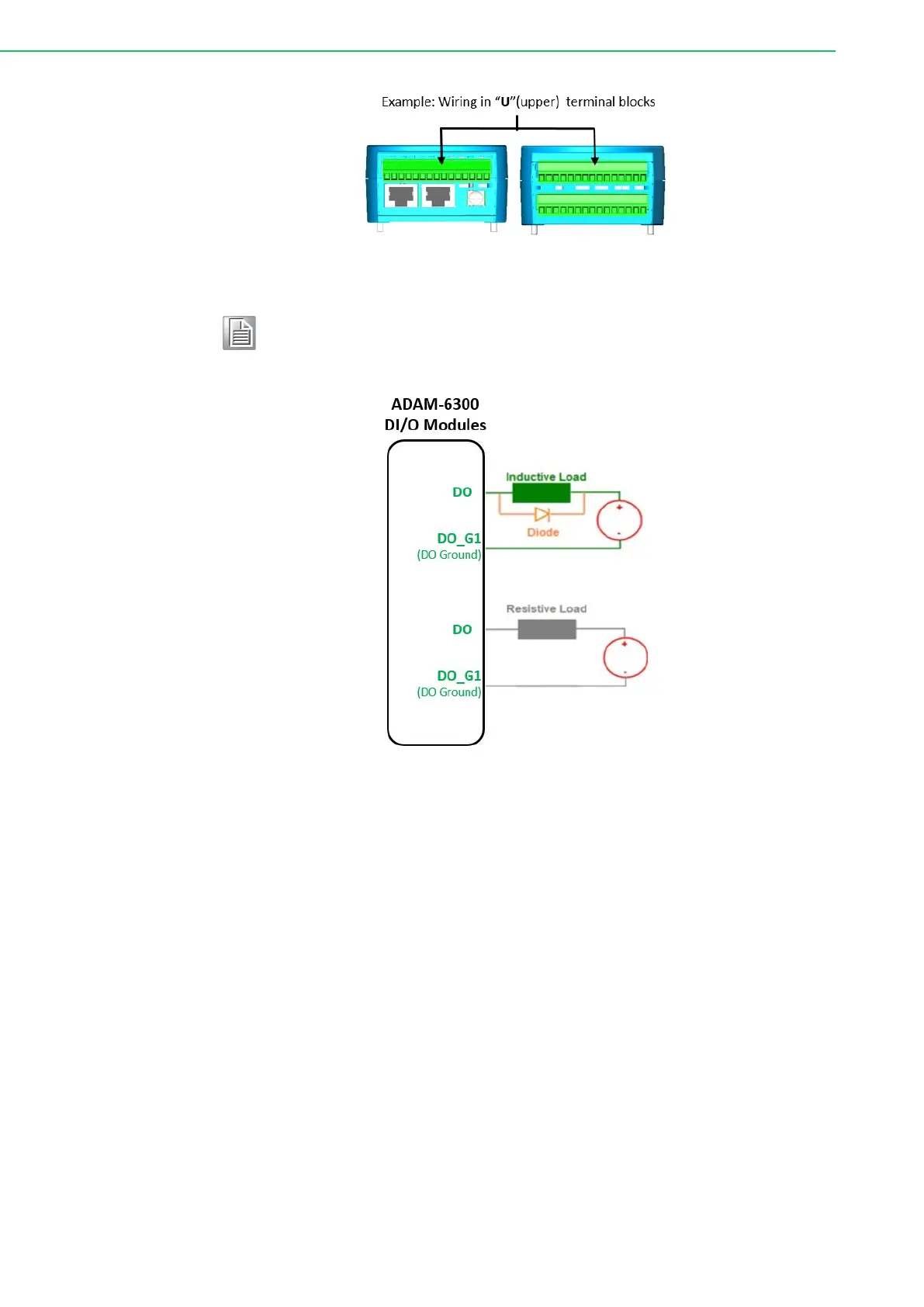

Figure 3.2 Application Wiring (Side View)
Figure 3.3 DO Output Wiring (Resistive and inductive load)
Note! It suggest that user use fly-diode when customer use inductive load.
