11 ADAM-6300 User Manual
Chapter 3 Introduction to Digital I/O
3.2 Digital Input/Output Modules (ADAM-6350)
The ADAM-6350 is a high-density I/O module with a built-in 10/100BASE-T interface
for seamless Ethernet connectivity. The module has 18 digital inputs and 18 digital
outputs with 2,500 VDC isolation protection. All inputs have a latch function for han-
dling important signal handling, and they can be used as 3-kHz counter and fre-
quency input channels(DI12~DI17). The outputs support 3 kHz Pulse Output
(DO12~DO17).
3.2.1 Specifications
General
 Power Consumption: 4W @ 24 V
DC
 Isolation: 2,500 V
DC
Digital Input
 Channel: 18
 Dry contact: Logic 0: Open; Logic 1: Closed to DGND
 Wet contact: Logic 0: 0 ~ 3 V
DC
, Logic 1: 10 ~ 30 V
DC
 DI12~DI17 Supports 3 kHz Counter Input
 DI12~DI17 Supports 3 kHz Frequency Input
Digital Output
 Channel: 18
 Type: Sink 30 V
DC
, 0.1A max. per channel
 DO12~DO17 Supports 3 kHz Pulse Output
3.2.2 Application Wiring

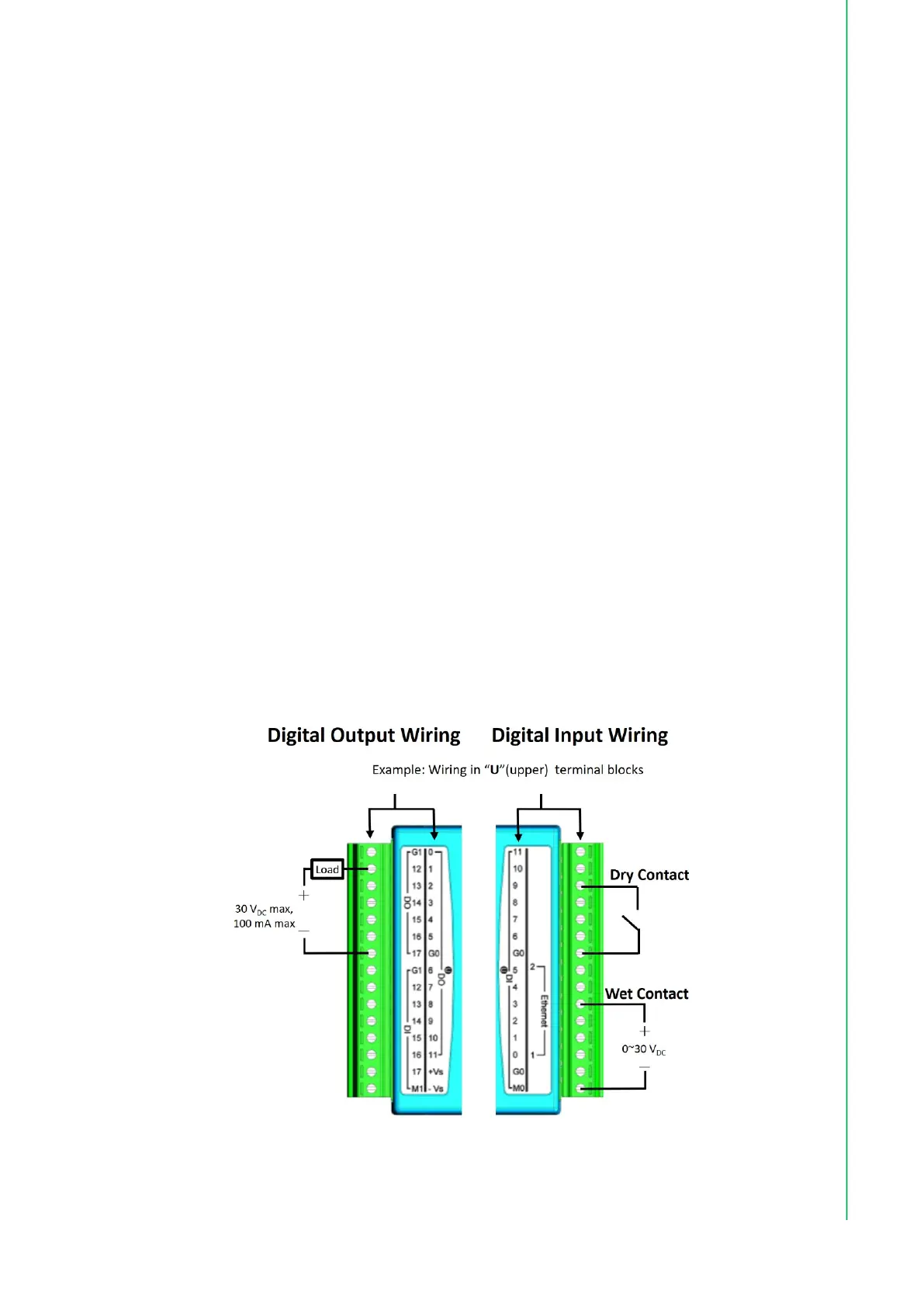

Figure 3.1 Application Wiring (Top View)
