ADAM-6300 User Manual
Chapter 4
System Configuration
C.

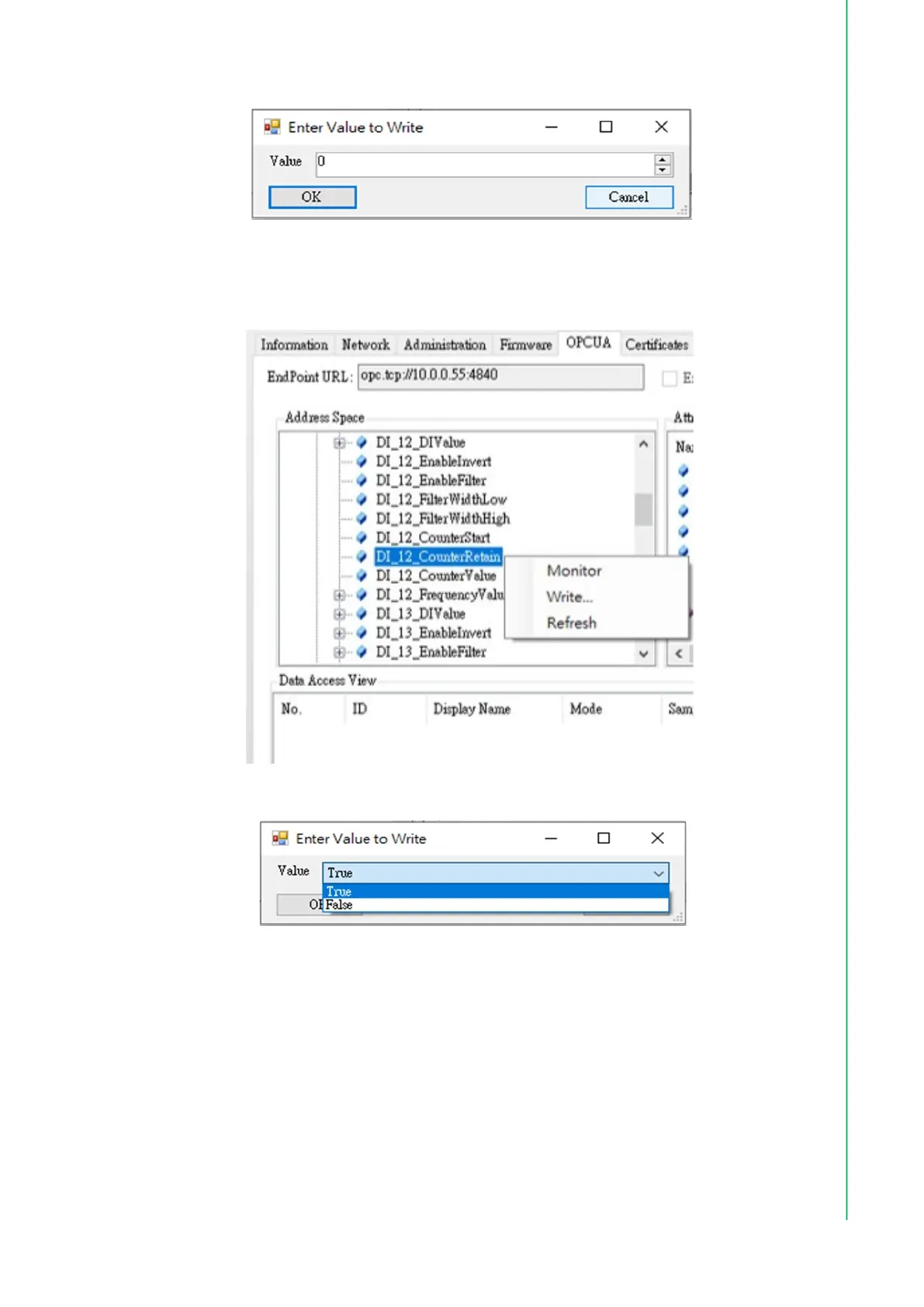

Select
DI_(channel)_CounterRemain
The
function o
f co
unter
remain i
s to
keep
last
counter
value
when po
wer of
f
.
a. Right click
W
rite
b. Select
T
r
ue
or
False
to enable o
r disable the function.
D.
Y
ou can add t
he nodes of
E
nableInvert,
Enab
leFilter
,
FilterWidt
hLow
,
Fil
-
terWidthHigh
functions in
Counter mode
if us
er need these functions.
