ADAM-6300 User Manual 58

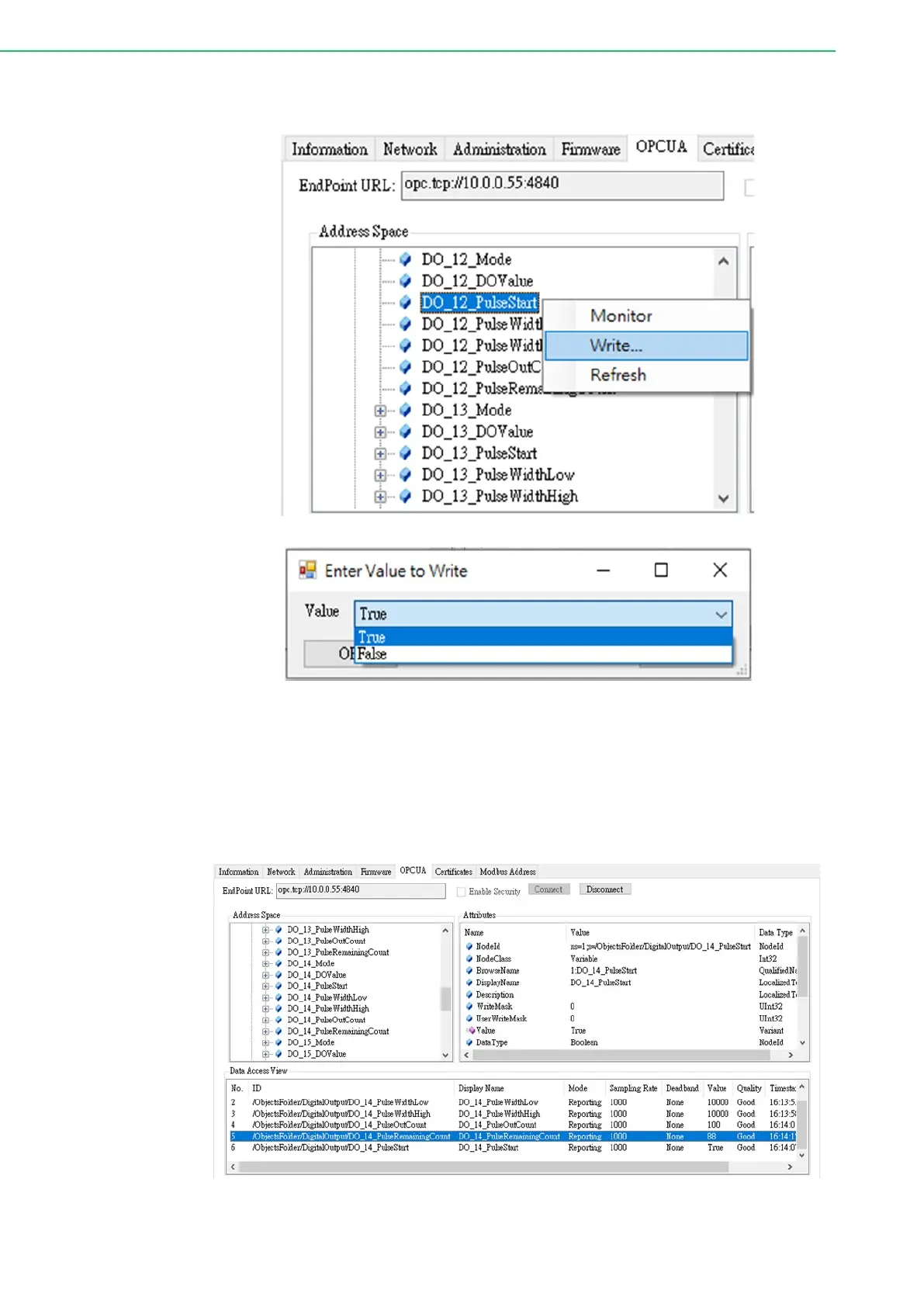

D. Select DO_(Channel)_PulseStart, and right click Write the True to start DO
pulse.
E. After above setting, left click and drag each of nodes of DO_(chan-
nel)_Mode, DO_(Channel)_ PulseWidthLow, DO_(Channel)_Pulse-
WidthHigh, DO_(Channel)_PulseOutputCount,
DO_(Channel)_PulseStart, DO_(Channel)_PulseRemainingCount to
Data Access View, and start to monitor these nodes.
You can see the remaining counter in DO_(Channel)_PulseRemaining-
Count.
