Chapter 1 Product Overview
1.3 LED Indicator Definition
The ADAM-6700 series gateways are equipped with LED indicators that show the
device status. The LED indicator behaviors are defined below.
The indicator behavior for error events can be configured using Node-RED.
1.4 Dimensions

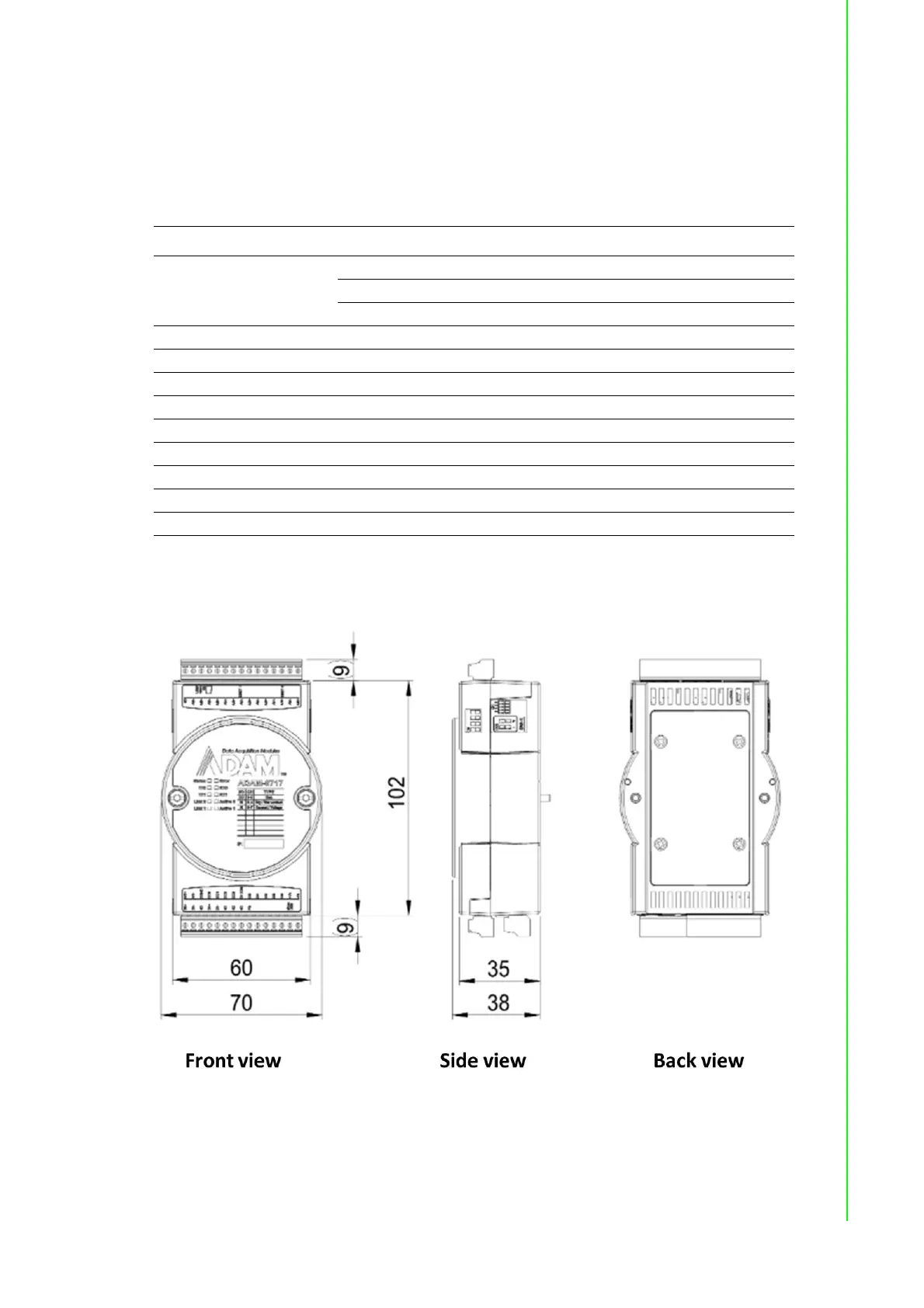

Figure 1.9 ADAM-6700 Series Dimensions
LED Color Behavior Definition
Status Green
Stay on Module is booting
Flash every 1s Operating system is ready
Flash every 0.5s Conducting image recovery processing
Error Red User defined User defined
Tx0 Yellow Stay on RS-485 port (D0) is transmitting data
Tx1 Yellow Stay on RS-485 port (D1) is transmitting data
Rx0 Green Stay on RS-485 port (D0) is receiving data
Rx1 Green Stay on RS-485 port (D1) is receiving data
Link0 Yellow Stay on Ethernet(Eth0) speed is 100 Mbps
Link1 Yellow Stay on Ethernet(Eth1) speed is 100 Mbps
Active0 Green Flashing Ethernet(Eth0) is transmitting/receiving data
Active1 Green Flashing Ethernet(Eth1) is transmitting/receiving data
