ADAM-6700 User Manual 14

2.2.2 Application Wiring

Digital Input and Digital Output Wiring

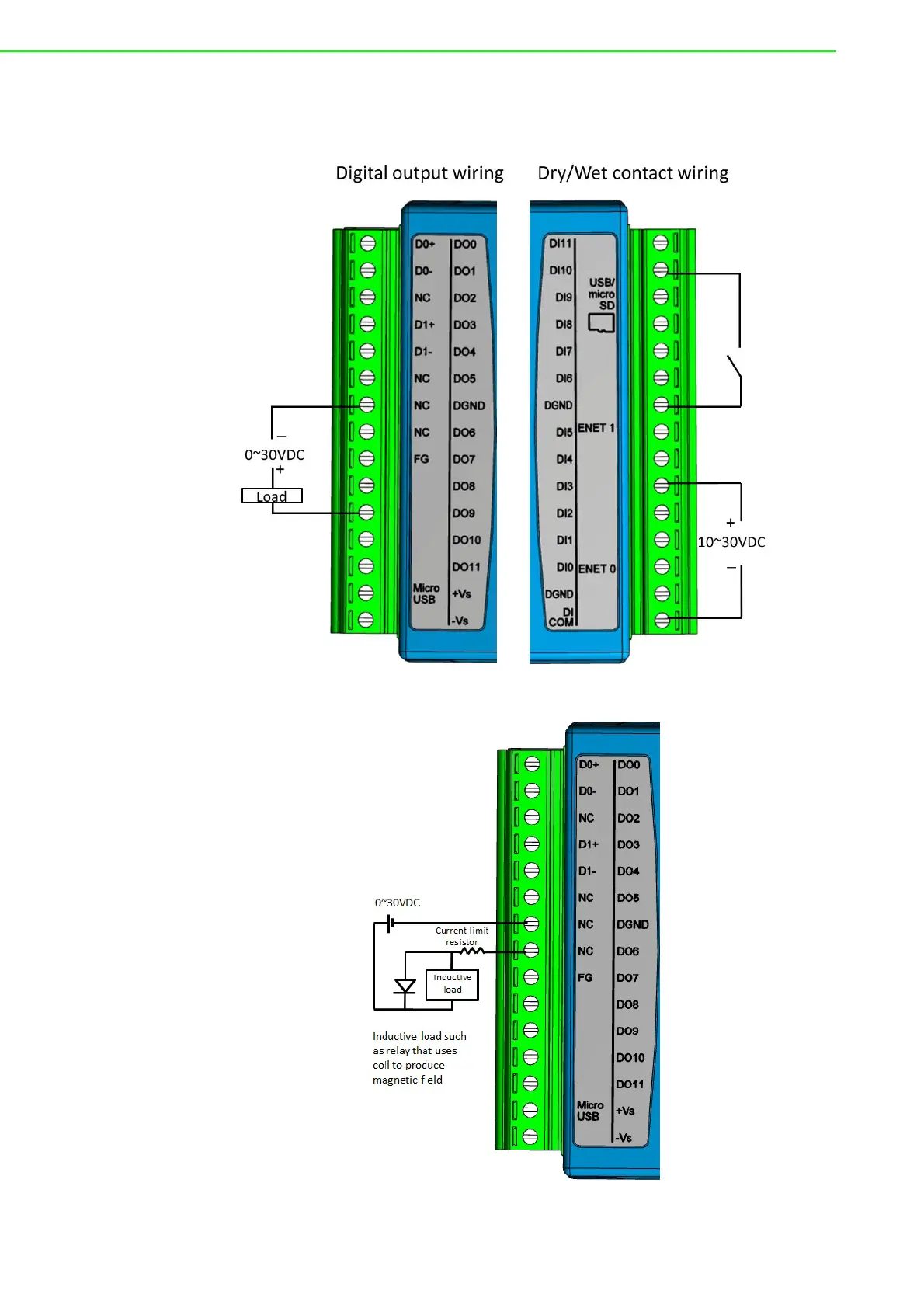

Figure 2.5 Digital Input and Digital Output Wiring

Figure 2.6 Digital Output with Inductive Load
