Appendix C OSD Operation Keypad

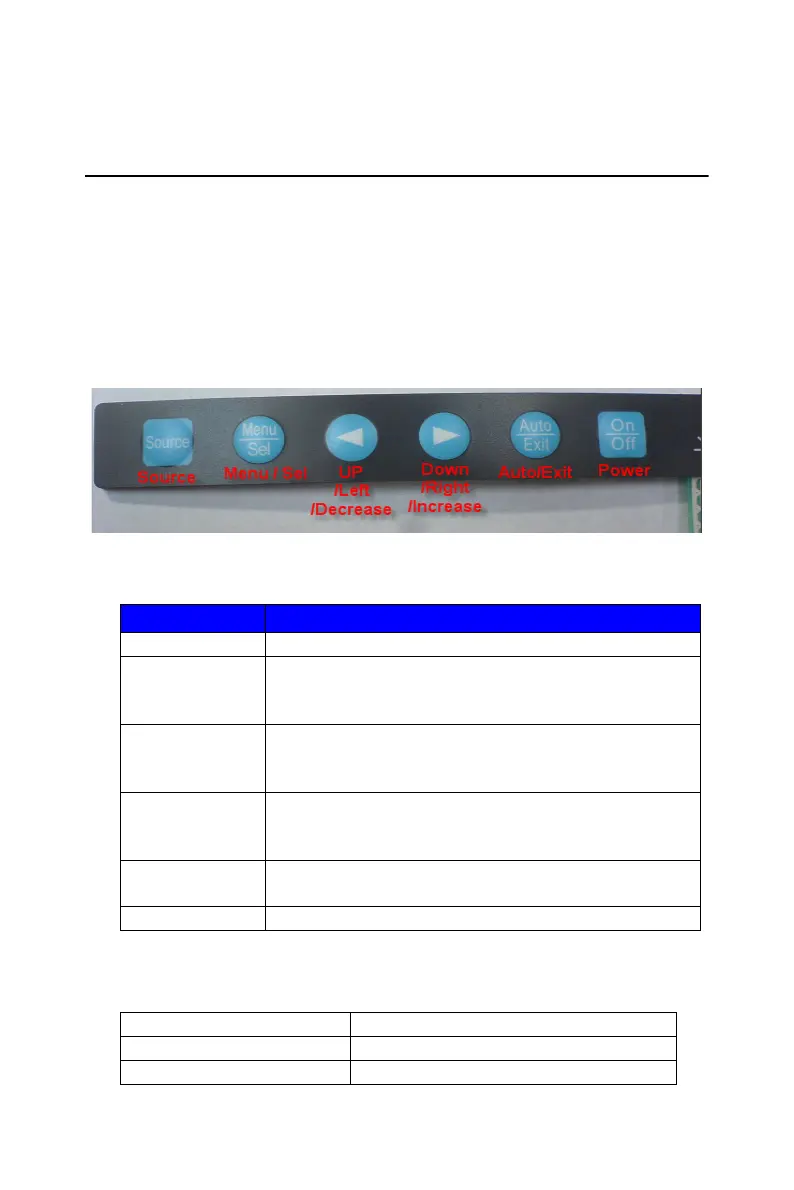

C.1 OSD Board Overview
The OSD keypad, including six keys and a two color indicator, is
designed as the OSD operation interface.
C.1.1 OSD Button Description
C.1.2 LED Function
Note: This sheet is only for reference, different models will
has different styles, but the functionality is the same.
Buttons Descriptions
Power Turn the monitor power ON or OFF.
Auto/Exit Automatically adjust the clock, phase, H-position and
V-position.
Exit menu.
Down/Right/
Increase
Activate the volume control.
Move the selector to the next option.
Increase the gauge value of the selected option.
Up/Left/
Decrease
Active volume control.
Move the selector to the previous option.
Decrease the gauge value of the selected option.
Menu/Sel Activate the OSD menu.
Enter/confirm the selected option.
Source Changes Input video source
On Green
StandBy/Off Green Blinking
No Signals Orange
