1.2 SystemOutlook
1.2.1 FRONTVIEW
Thereare8LEDindicatorsand4antennaholdsinfrontofthesystem:


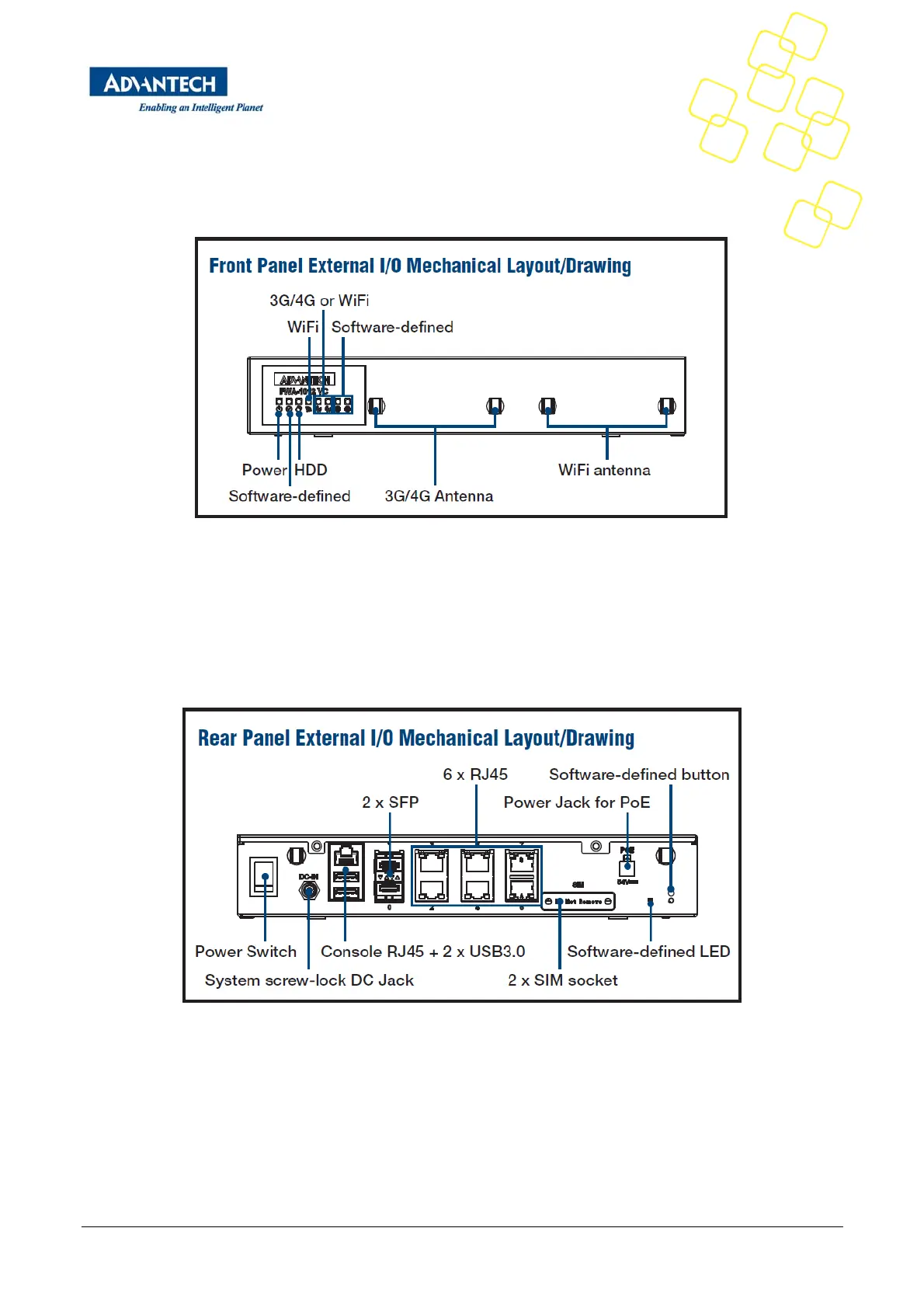

Figure1:SystemFrontView

1.2.2 REARVIEW
Therearepowerswitchlocatesonbackofchassis,lockableDC‐Injack,oneconsoleport,twoUSB3.0
ports,two1GbESFPports,sixRJ45ports,twoSIMslots,POEconnectorandSWdefileLED/button
therearside.

Figure2:SystemRearView
