1.5 ComponentInstallation
1.5.1 MEMORY/2.5”SSD_HDD/POEMODULE/M.2SSD/LTEMODULE/WIFIMODULE

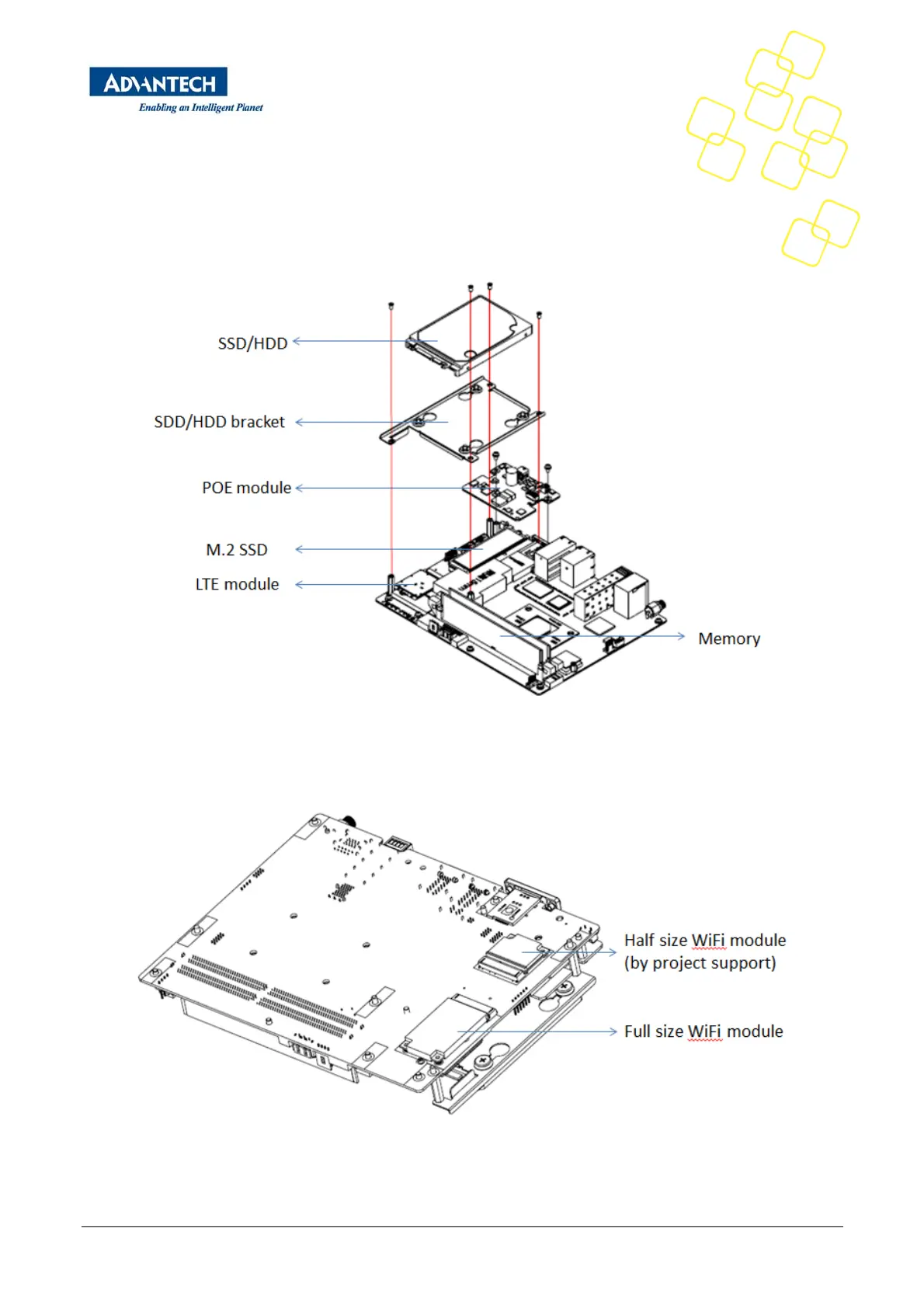

ThisisthedrawingofmemorylocationandthestackingofLTE,M.2,POEmodule,HDDbracketand
SSD/HDDintoFWA‐1012VCunit.


Figure5:maincomponentsonthetopside


TightenscrewbytheinstructiononWifimoduleinbottomsideasbelow:

Figure6:wifimodulelocationonthebottomside

