3.2.3 HARDWARESETUPMENU
ThissubmenuallowsyoutochangethesettingsoftheIntelchipset.Pleasenotethat“chipset”isalegacy
termandtherelatedfunctionalityissplitovertheCPUandPCHportionsoftheSoC.Similarly,theterms
“SouthBridge”and“NorthBridge”arelegacytermsanddonotrepresentthesiliconimplementationany
more.However,thosetermsarekeptconsistentwithpreviousproductstoallowuserstonavigatemore
easily.
Thesubmenusaredescribedonthefollowingpages.


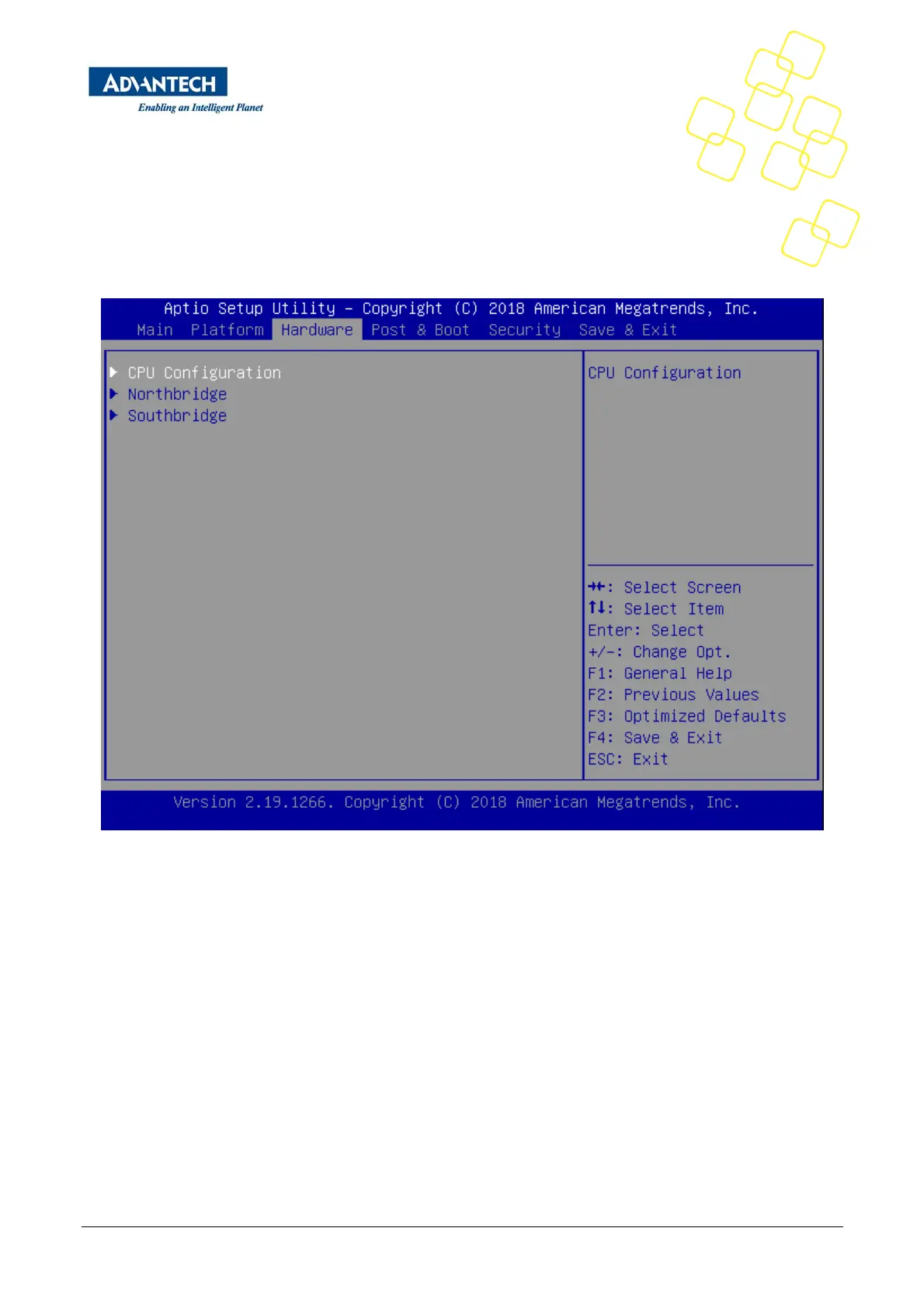

Figure25:HardwareConfigurationMenu

3.2.3.1 HardwareSetup:CPUConfiguration
ThismenuuseexampleofAtomC3000CPUconfiguration.
