Copyright2017AdvantechCo.Ltd.Allrightsreserved.  Page19

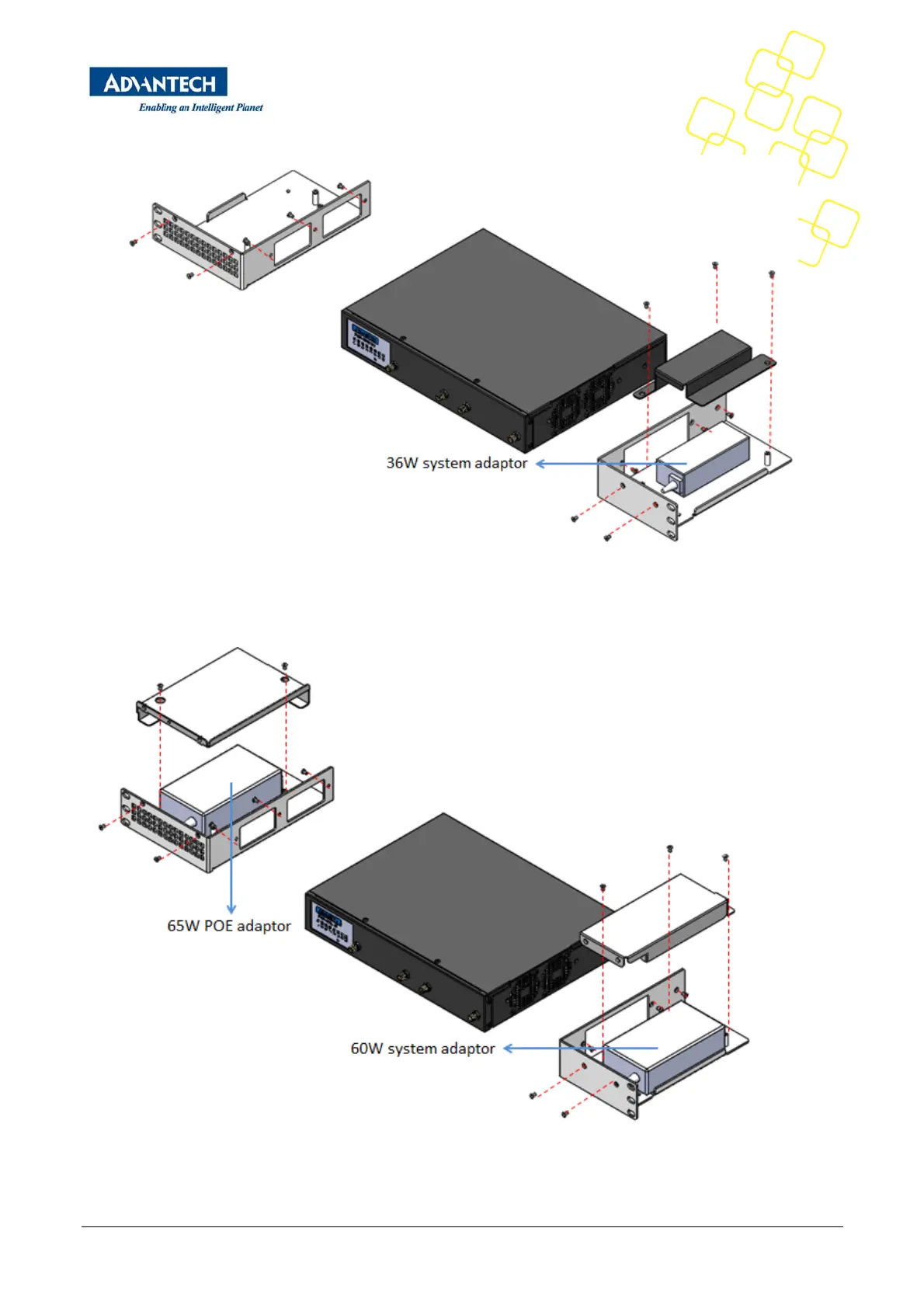

1.5.2.2 4/8coreSKU rack mountkitinstallation

Figure11:Rackmountfor4/8coreSKU

1.5.2.3 8coreSKUwithPOErackmountkitinstallation

Figure12:Rackmountfor8coreSKUwithPOE

