1.4.2 Communication network
1.4.2.1 5800D1 MECHATROLINK-II：
◎ Description: Connected to MECHATROLINK-II Devices

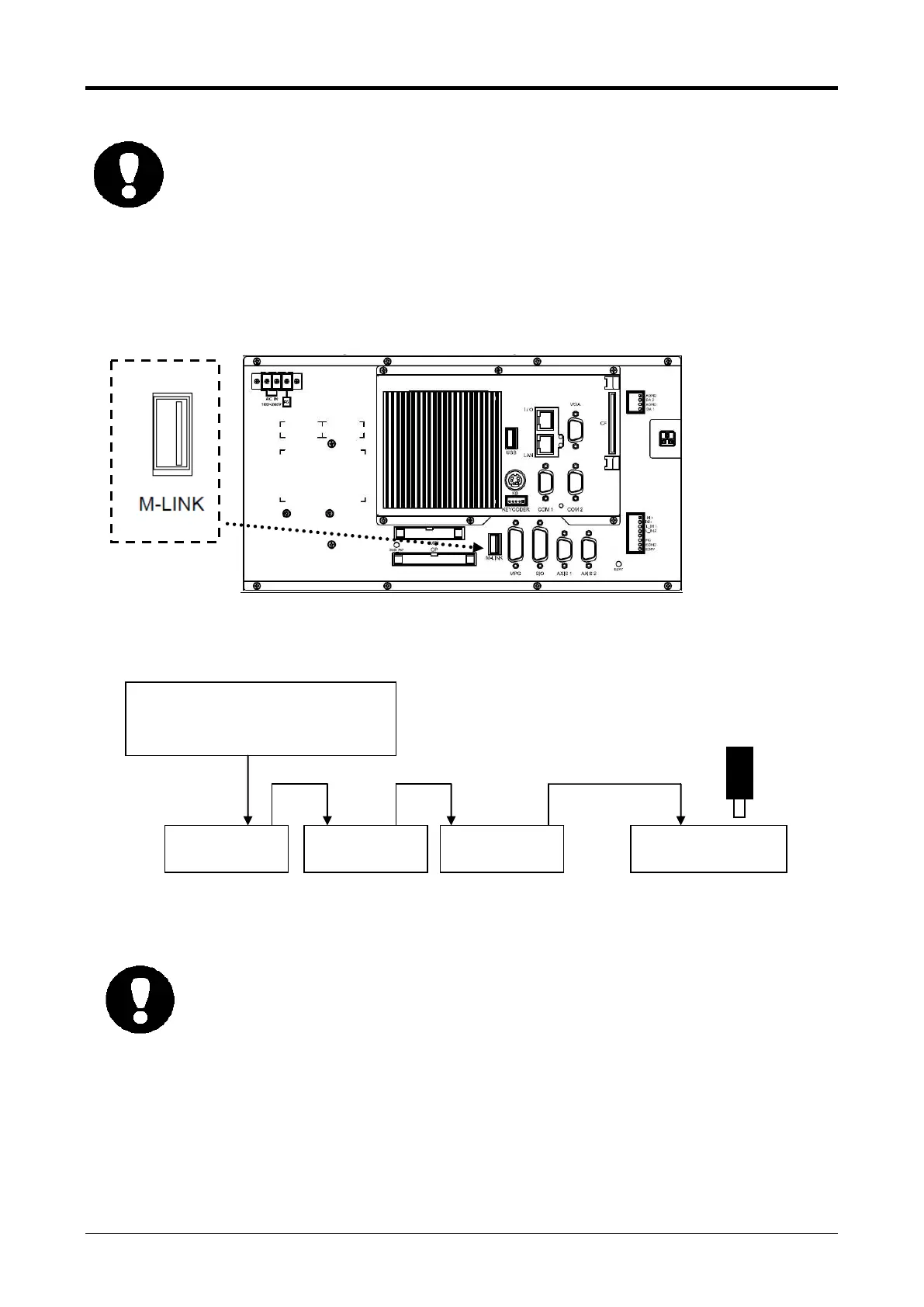

◎ Wiring example as below
 Terminator are needed at the ends of the network.
 Don’t lay signal wires in the same duct or bundle with power lines.
5800D1 controller (Master station)
built-in terminator
Slave station
Slave station
Slave station
Last Slave station
……
Terminator
