Expansion IO
28 Advantech LNC Technology Co., Ltd.
Advantech-LNC

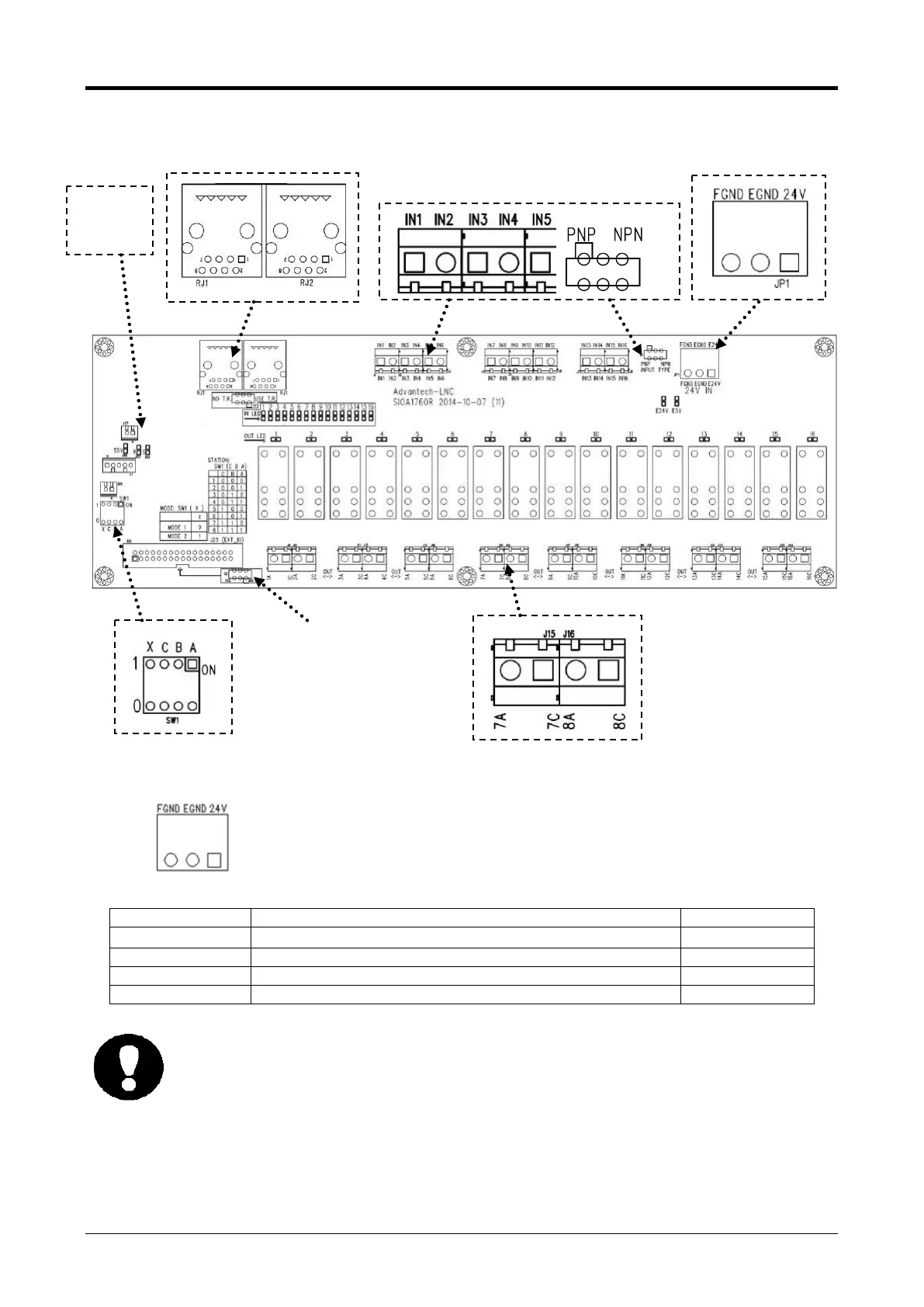

2.2 SIOA1760R
(1)Input power(DC IN)
Specifications of power
Item
Standard
NOTE
Voltage
DC24V±2%
Ripple(max)
150mV(P-P)
Rated current
1A (for control circuit) & devices loading
Protection
Overload / Over voltage / Short circuit
 The correct wiring must be confirmed before power transmission. Do not connect AC power
to FG or 24V; otherwise it will burn out the board.
(2)
(1)
(3)
(2)
Status
LED
(5)
(7)
(4)
(6)
