2 Expansion IO
2.1 SIOA1700

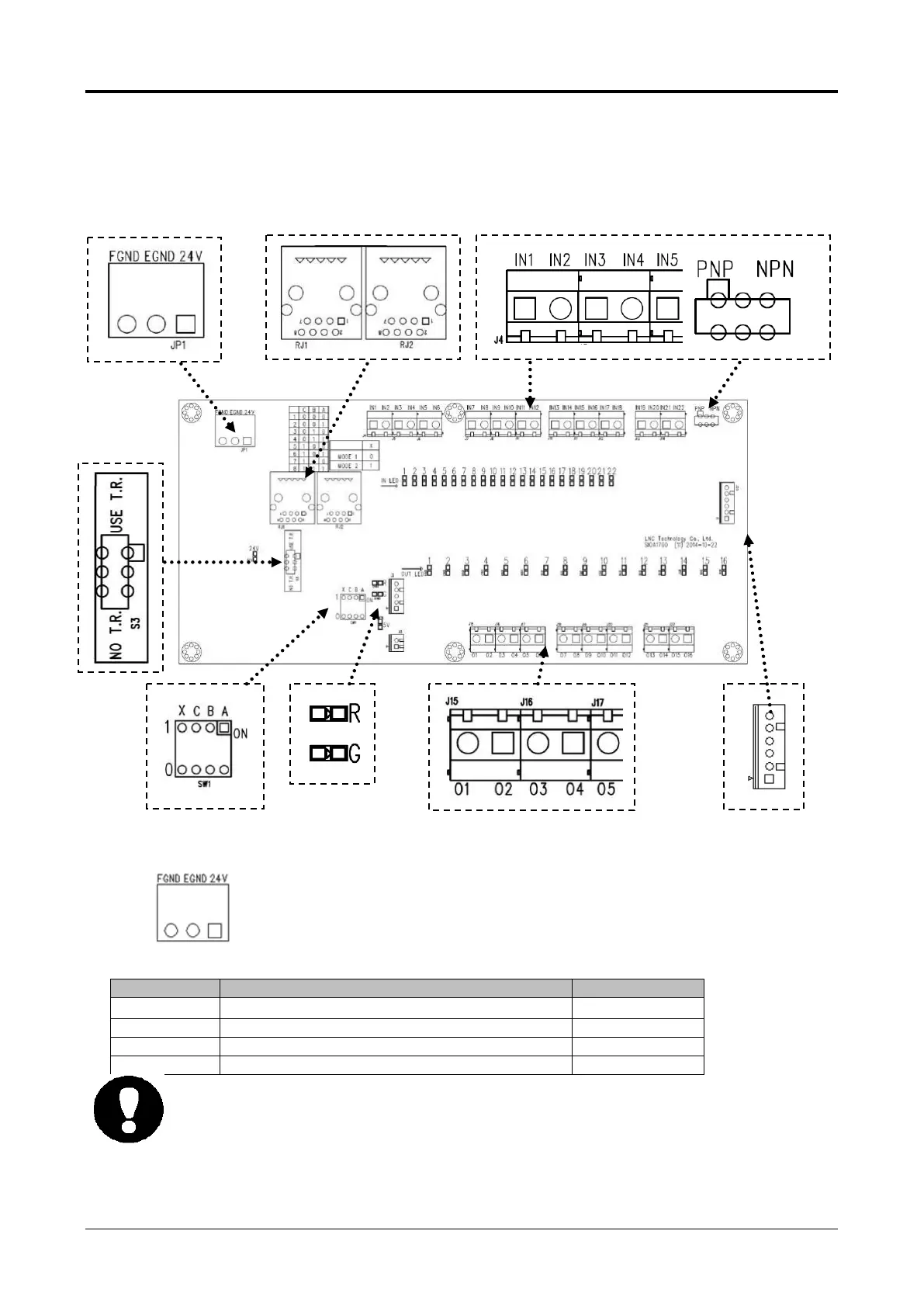

(1) Input power(DC IN)
Specifications of power
Item
Standard
NOTE
Voltage
DC24V±2%
Ripple(max)
150mV(P-P)
Rated current
1A (for control circuit) & add device loading
Protection
Overload/ Over voltage/ Short circuit
 The correct wiring must be confirmed before power transmission. Do not connect AC power
to FG or 24V; otherwise it will burn out the board.
(1)
(3)
(2)
(2)
G
(4)
(5)
(6)
(7)
G
