Advantech LNC-5800D User Manual

Product introduction
Advantech LNC Technology Co., Ltd. 21
Advantech-LNC

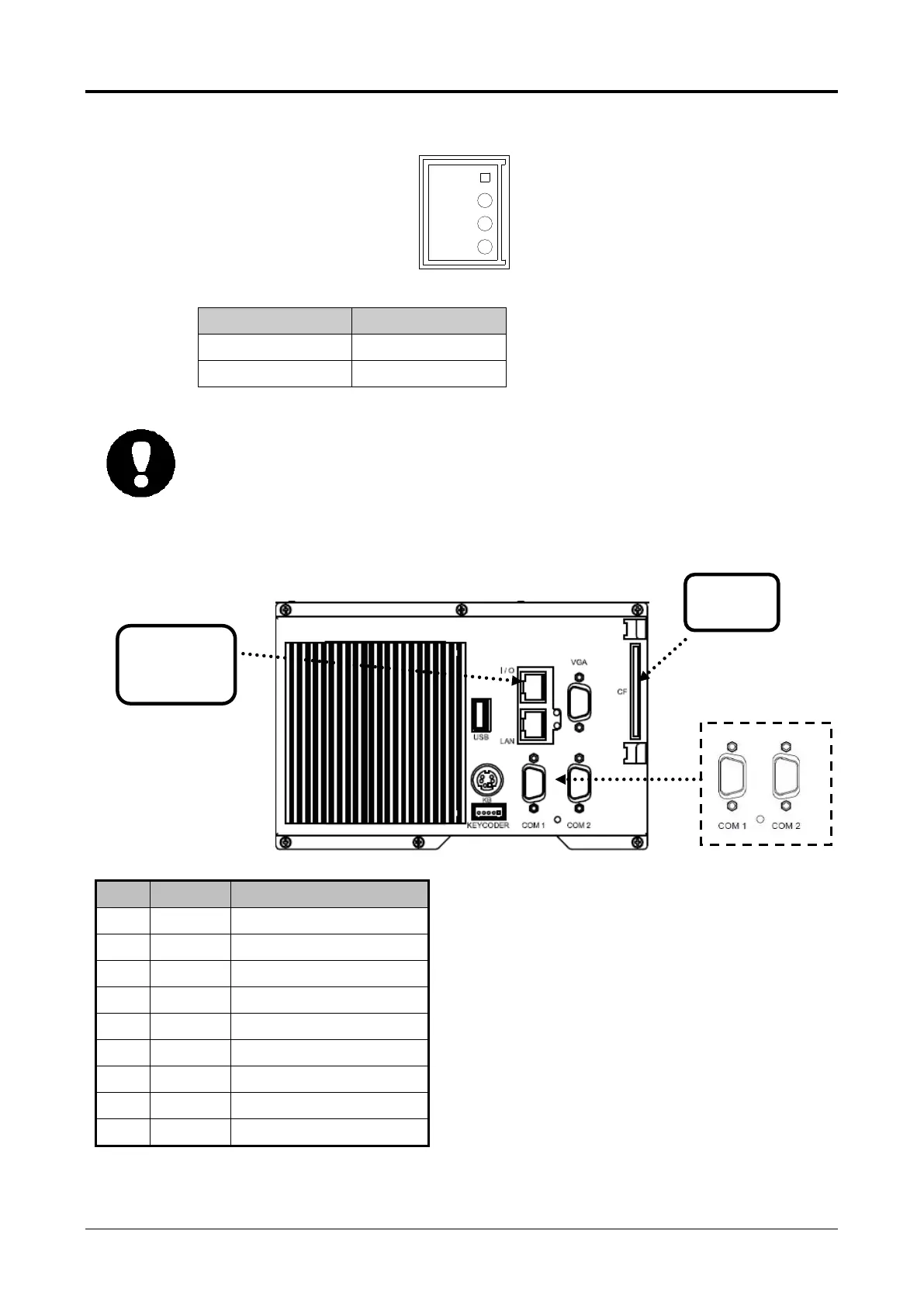

Analog output connector
AO
DA1、DA2
Resolution
16bits
Output Voltage
±10V
 Don’t lay signal wires in the same duct or bundle with power lines
1.4.6 COM definition
(1) COM1 connector (RS232)
PIN
Definition
Description
1
DCD
Data Carrier Detect
2
RD
Receive Data
3
TD
Transmit Data
4
DTR
Data Terminal Ready
5
SG
Signal Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI
Ring Indicator
DA 1
AGND
DA 2
AGND
(3) CIO
CF slot
(2)
(1)
