Advantech LNC-5800D User Manual

Expansion IO
Advantech LNC Technology Co., Ltd. 29
Advantech-LNC
(2)IO station switch
◎ Description: (A、B、C) Expansion IO board station number setting
◎ Output mode setting (X): When communication fail
Mode1 (switch to 0): All output points hold at the latest status.
Mode2 (switch to 1): All output points return to zero.
◎ Station number setting (A B C): Maximum 8 stations.
Definition
Station setting
A
B
C
Station 1
0
0
0
Station 2
0
0
1
Station 3
0
1
0
Station 4
0
1
1
Station 5
1
0
0
Station 6
1
0
1
Station 7
1
1
0
Station 8
1
1
1

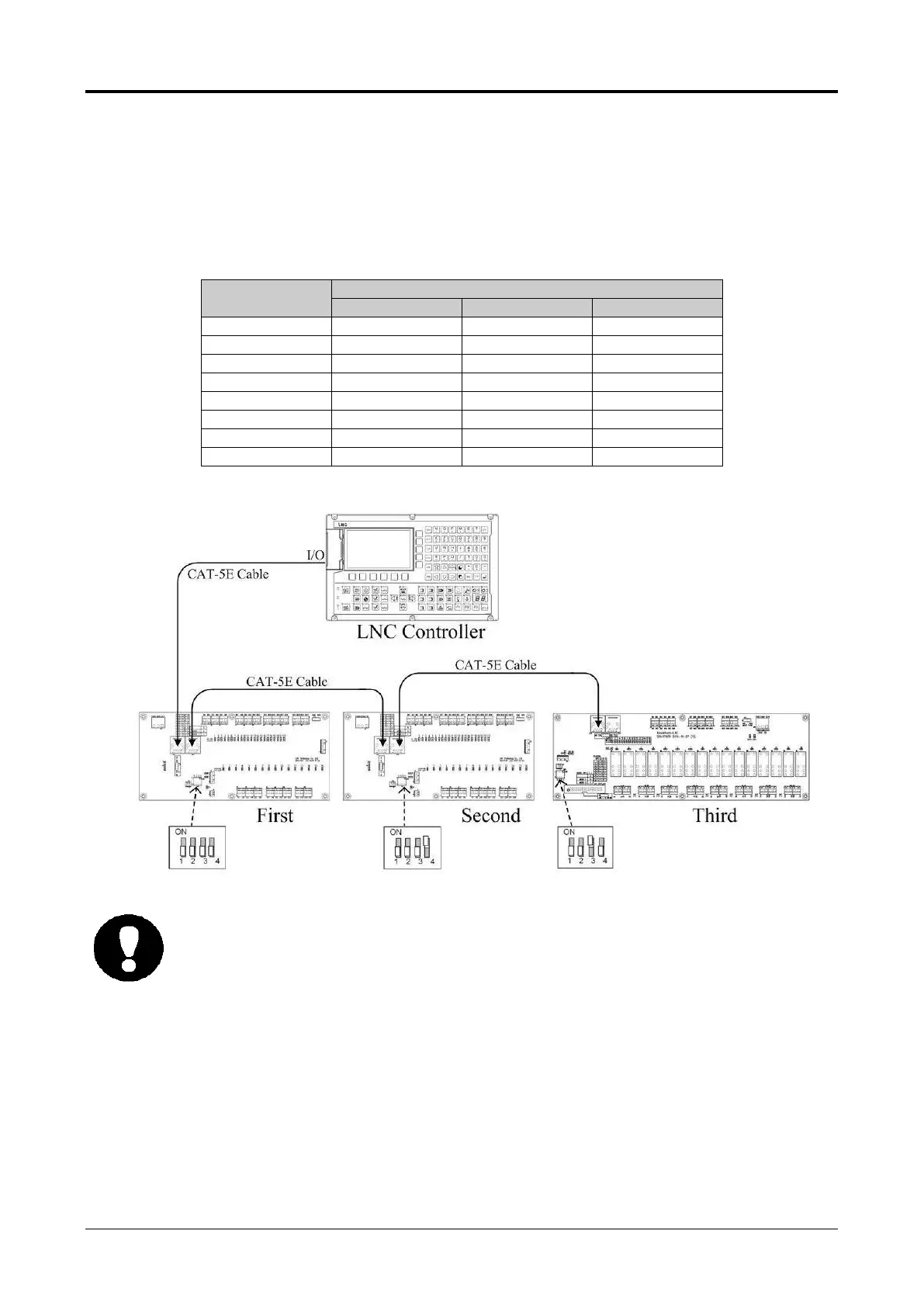

◎ Below is an example for connects with two SIOA1700 & SIOA1760R:
 CIO cable STP(Shielded Twisted Pair cable) CAT 5e cable must be used to prevent noise.
 Don’t lay communication cable in the same duct or bundle with power lines.
