Advantech LNC-5800D User Manual

Product introduction
Advantech LNC Technology Co., Ltd. 17
Advantech-LNC
(2) MPG connector
◎ Description: Connecting multi-purpose MPG, contains encoder and 8DI signals.

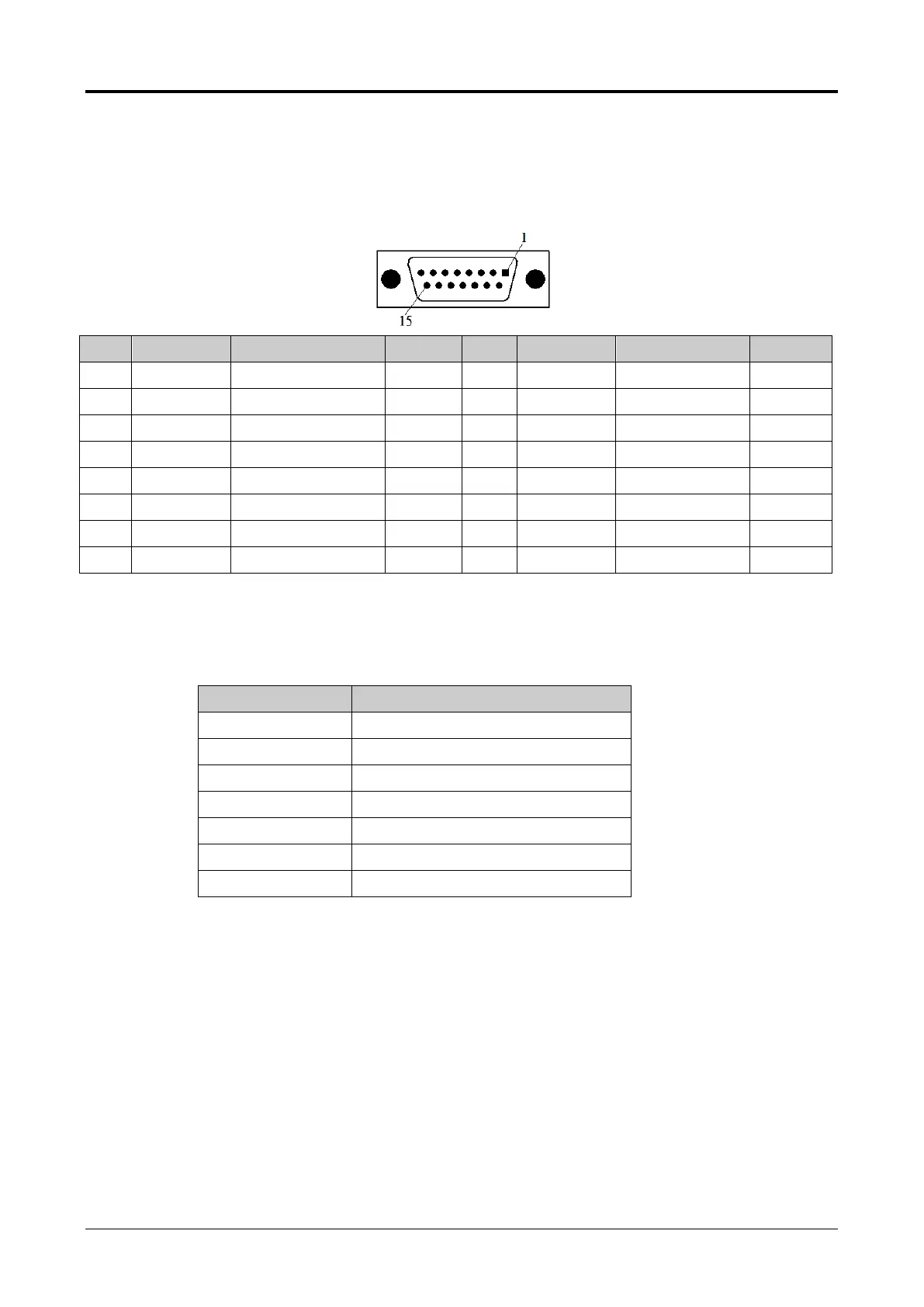

◎ Connector description: D_SUB 15PIN (Female) pin definition as shown below:
PIN
Definition
Description
Type
PIN
Definition
Description
Type
1
S5V
DI and MPG power
DCOUT
9
GND
S5V ground
-
2
MPG4
MPG 4
DI
10
MPG5
MPG 5
DI
3
ENC /B
Encoder /B
I
11
ENC B
Encoder B
I
4
ENC /A
Encoder /A
I
12
ENC A
Encoder A
I
5
MPG X100
MPG*100
DI
13
MPG X10
MPG*10
DI
6
MPG Z
MPG Z
DI
14
MPG Y
MPG Y
DI
7
MPG X
MPG X
DI
15
MPG6
MPG 6
DI
8
S5V
DI and MPG power
DCOUT
-
-
-
◎ Specifications description:
(1) The encoder differential signals.
(2) S5V provides0.5A rated current
DI
MPGX、Y、Z、4、5、6 /X10、X100
Type
SOURCE
OFFON level
1.8V
OFFON delay time
32us
ONOFF level
1.3V
ONOFF delay time
216us
Input impedance
1.2KΩ
Input current
DC5V 3mA
