 In order to prevent the destruction of electronic components, please turn off E24V power when
setting DI mode.
(4) Digital Output (DO)
◎ Description: 16 DO with LED indicators.

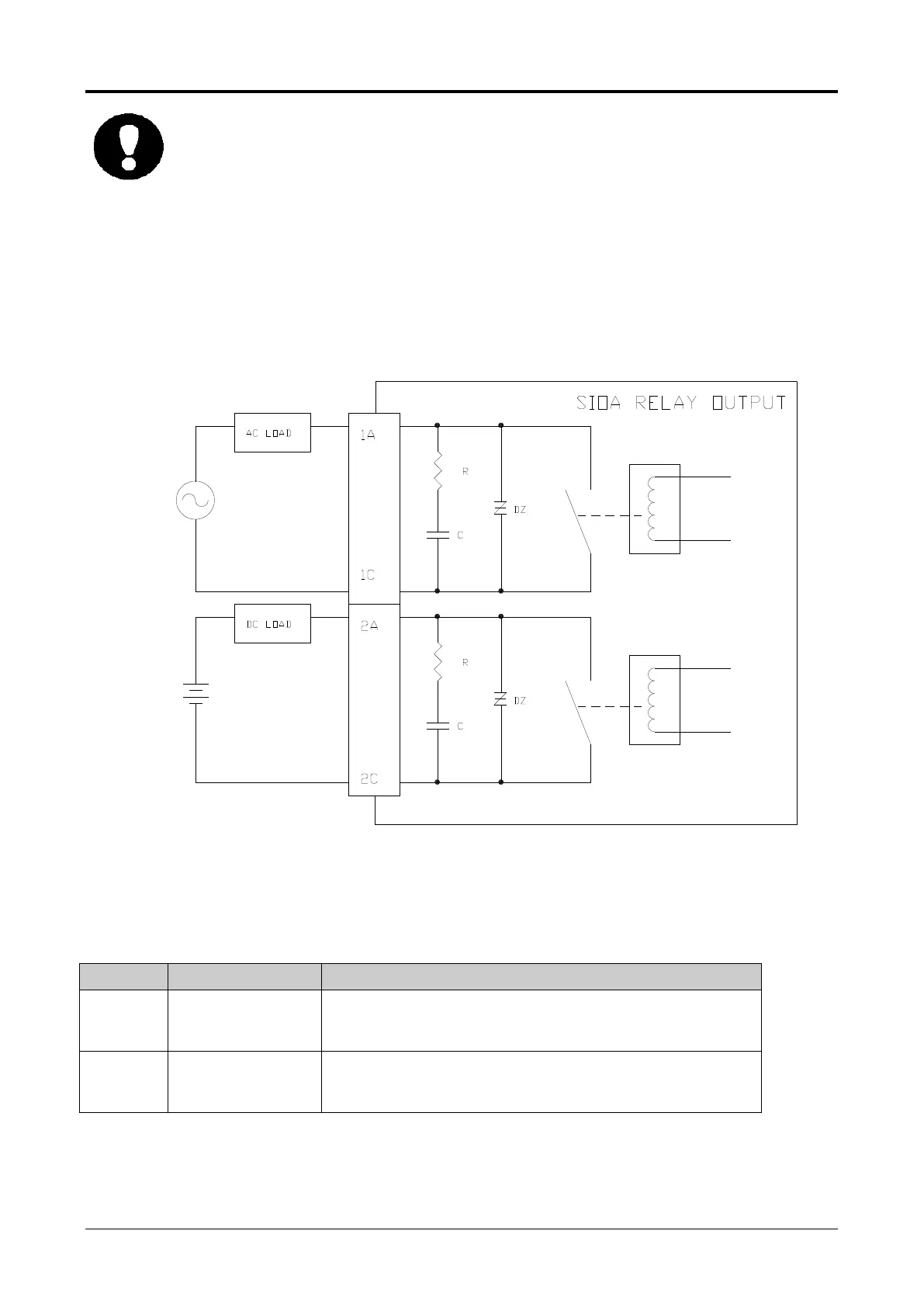

◎ Output specifications:
16 RELAY OUT, 6A/250V
(5) Status LEDs：
◎ Description: Communication status .
Location
Definition
Description
D24
Link
Color：Green
Power ON Status：LED Turns On
Receive CIO Command：LED Blinking
D23
Working
Color：Red
Power ON Status：LED Turns Off
Receive CIO Command assigned to this Unit：LED Blinking

Advantech LNC-5800D Specifications

General

Brand	Advantech
Model	LNC-5800D
Category	Controller
Language	English
