PCM-3365 User Manual 50

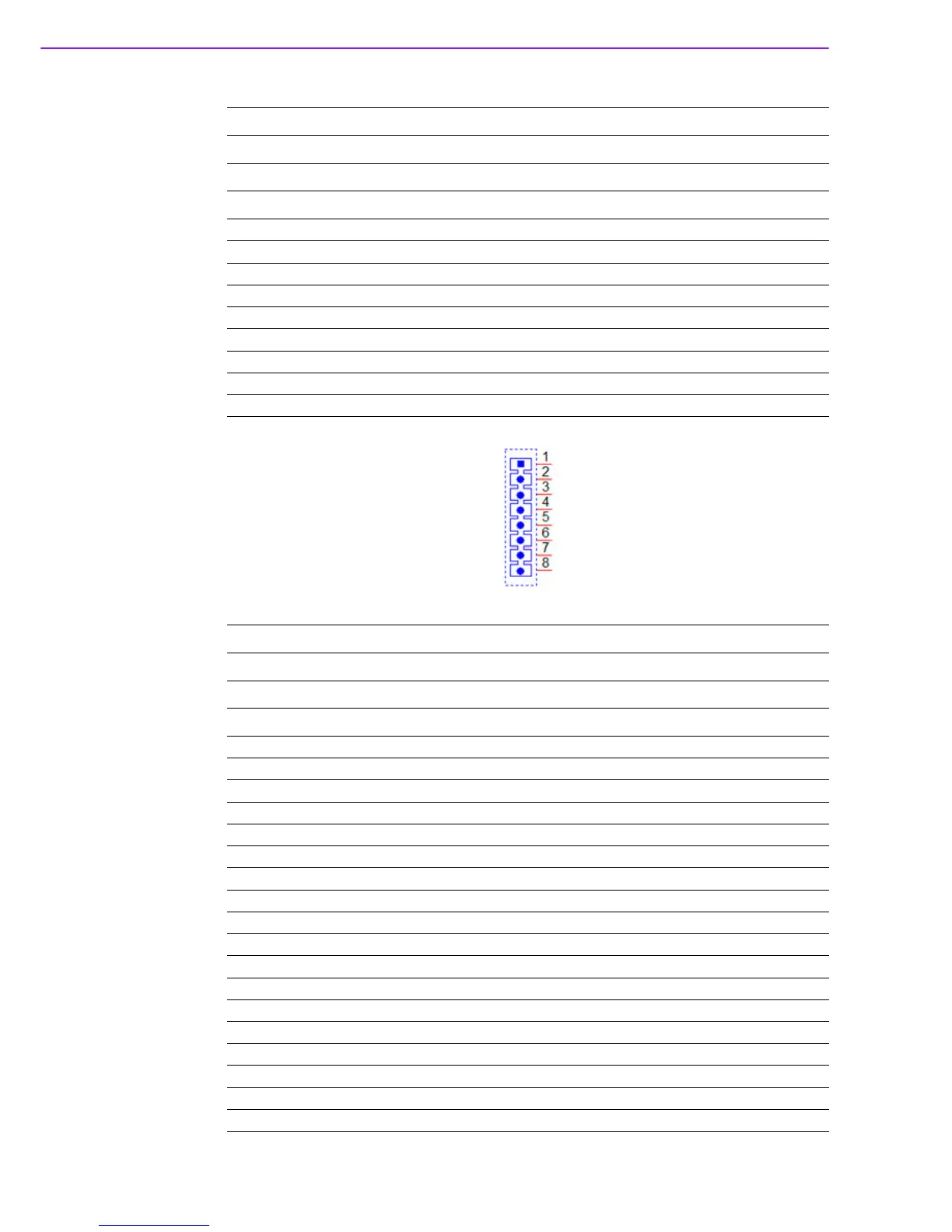

CN10 Front Panel Connecter
Part Number 1653008101-01
Footprint HD_8x1P_79_D
Description
Pin Pin Name
1FP_PSIN#
2GND
3FP_RST#
4GND
5 Power LED+
6 Power LED-
7HDD LED+
8HDD LED-
CN11 MINIPCIEXPRESS
Part Number 1654002538
Footprint FOX_AS0B226-S68K7F
Description MINI PCI E 52P 6.8mm 90D SMD AS0B226-S68Q-7H
Pin Pin Name
1 WAKE#
2 +V3.3SB
3NC
4GND
5NC
6+V1.5
7NC
8NC
9GND
10 NC
11 CLK_MINI_PCIE-
12 NC
13 CLK_MINI_PCIE+
14 NC
15 GND
16 GND
17 NC
