Advantech TouchMix XI User Manual

TouchMix
®
XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 22
Installing the Wi-Fi Module


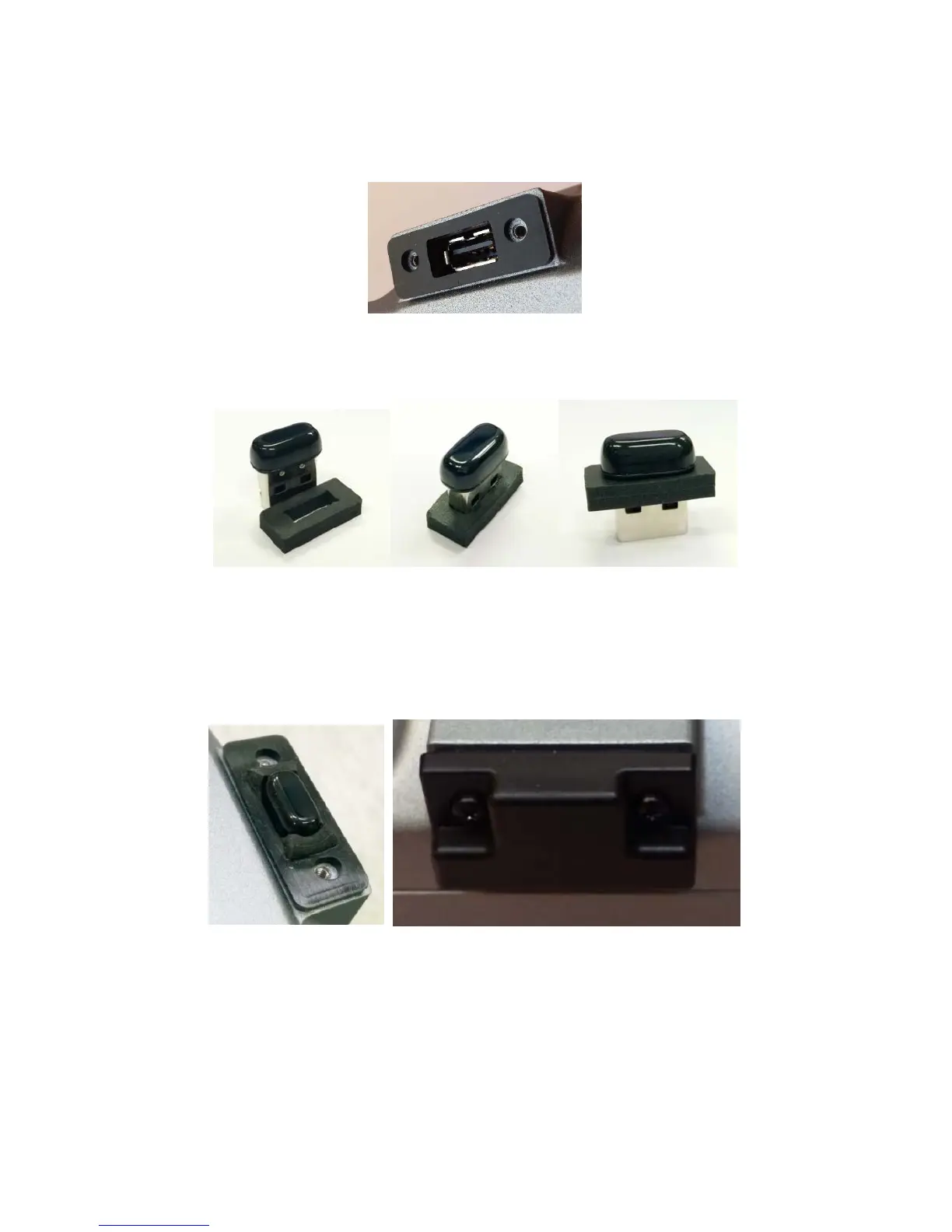

1) Unscrew the Wi-Fi cover, revealing gasket and USB port:
2) Prepare Wi-Fi module and foam seal (in Accessory Box) as follows:
Orient parts as shown Slide Wi-Fi Module into foam as shown
3) Insert the Wi-Fi module into the top USB port of the TouchMix® XI computer. Re-
secure the Wi-Fi cover with screws. Do not over tighten screws.




Advantech TouchMix XI Specifications

Power

input voltage	12VDC
current	3.7A

Ports & Interfaces

USB 2.0 ports	5
RS-232 serial port	1
LAN port	1GB
HDMI port	1

Weight and Dimensions

dimensions	390mm x 314mm x 60mm
weight	6 kg
