TouchMix
®
XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 25

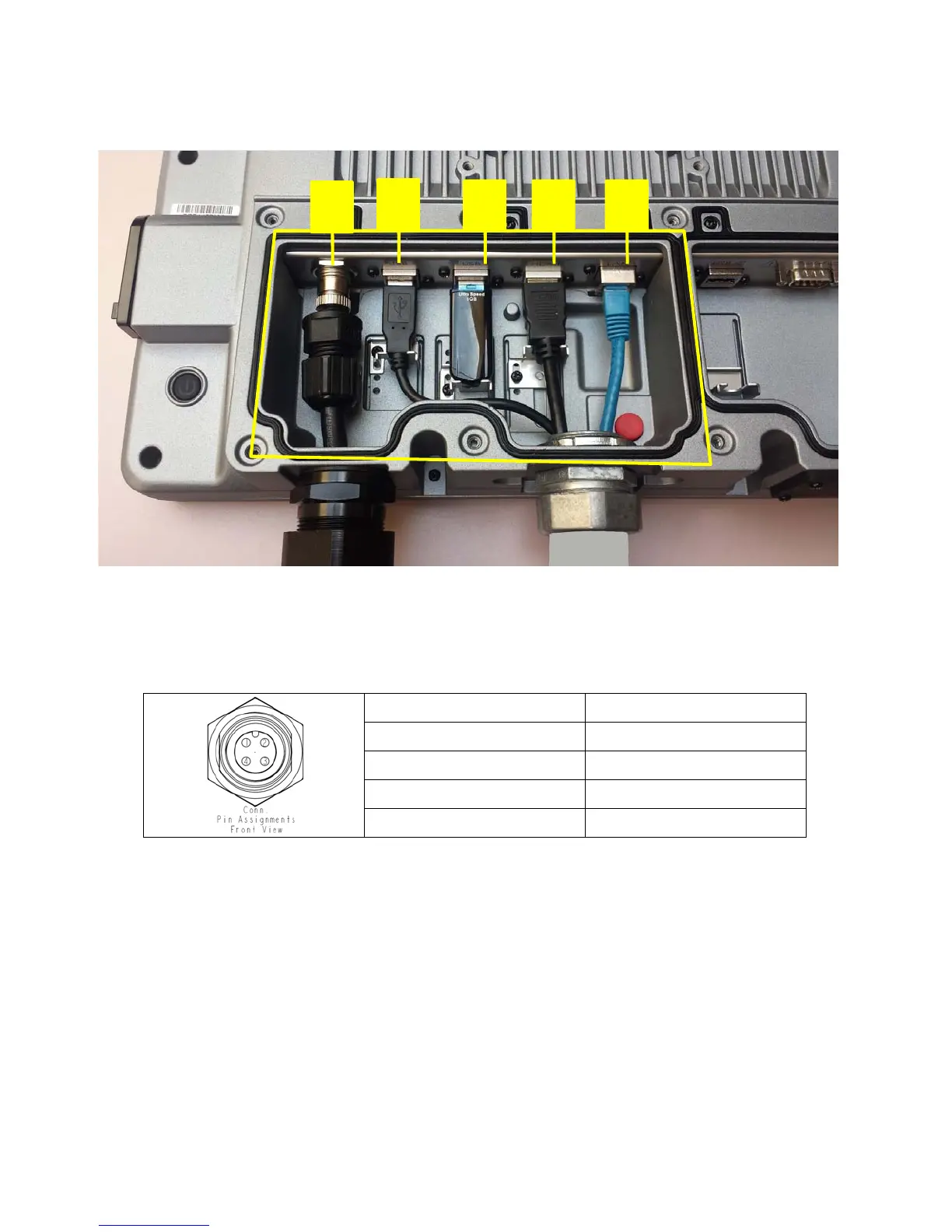

NON-ENERGY LIMITED (Safe Area) Connections
(1) 12VDC Power Supply Connection
Use supplied DC power cable and cable exit gland. Reference Installation Control Drawings)
Pin Number Signal Name
1 12VDC
2 12VDC
3 DC Return, Case
4 DC Return, Case
a.) Standard Power Supply and 50ft Cable
Install power supply in safe area, route cable to computer via appropriate means
(see Installation Control Drawings) and connect to DC power input on computer. –
DO NOT CONNECT AC Mains until all connections to the computer have been
completed!
1
2
3 4
5
