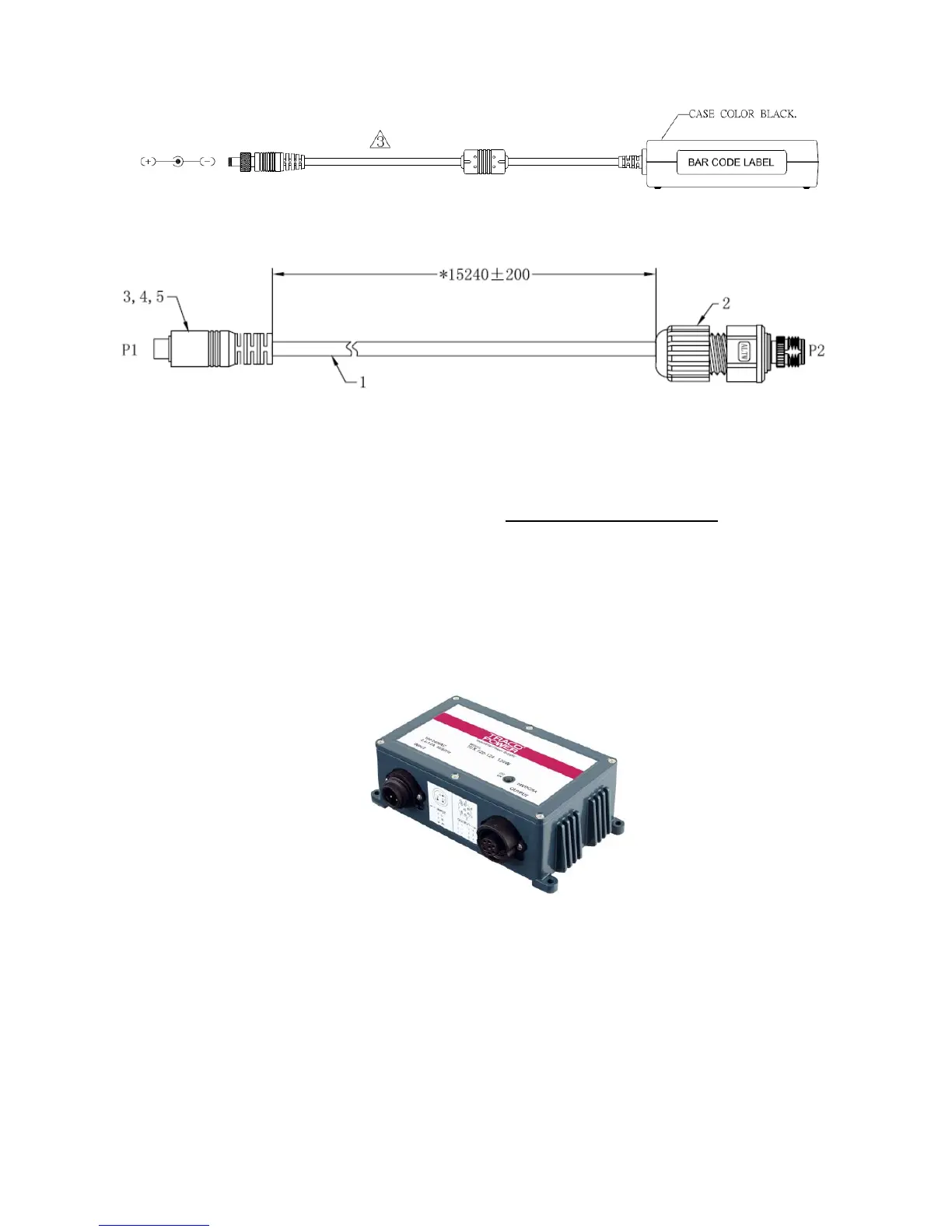

TouchMix
®
XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 26
Standard Power Supply
Standard DC cable
b.) Optional ATEX approved Power Supply (ATEX Installations ONLY)
MountATEXpowersupplyinthehazardousareaasrequired.ConnecttheDCcordtothe
TouchMix®XIComputerDCpowerinputandroutetoATEXpowersupplyandconnectto
PowerSupplyconnector.RouteACcordtoSafeAreavia appropriate means (see
Installation Control Drawings) – DO NOT CONNECT AC Mains until all connections
to the computer have been completed!
Optional ATEX Power Supply
