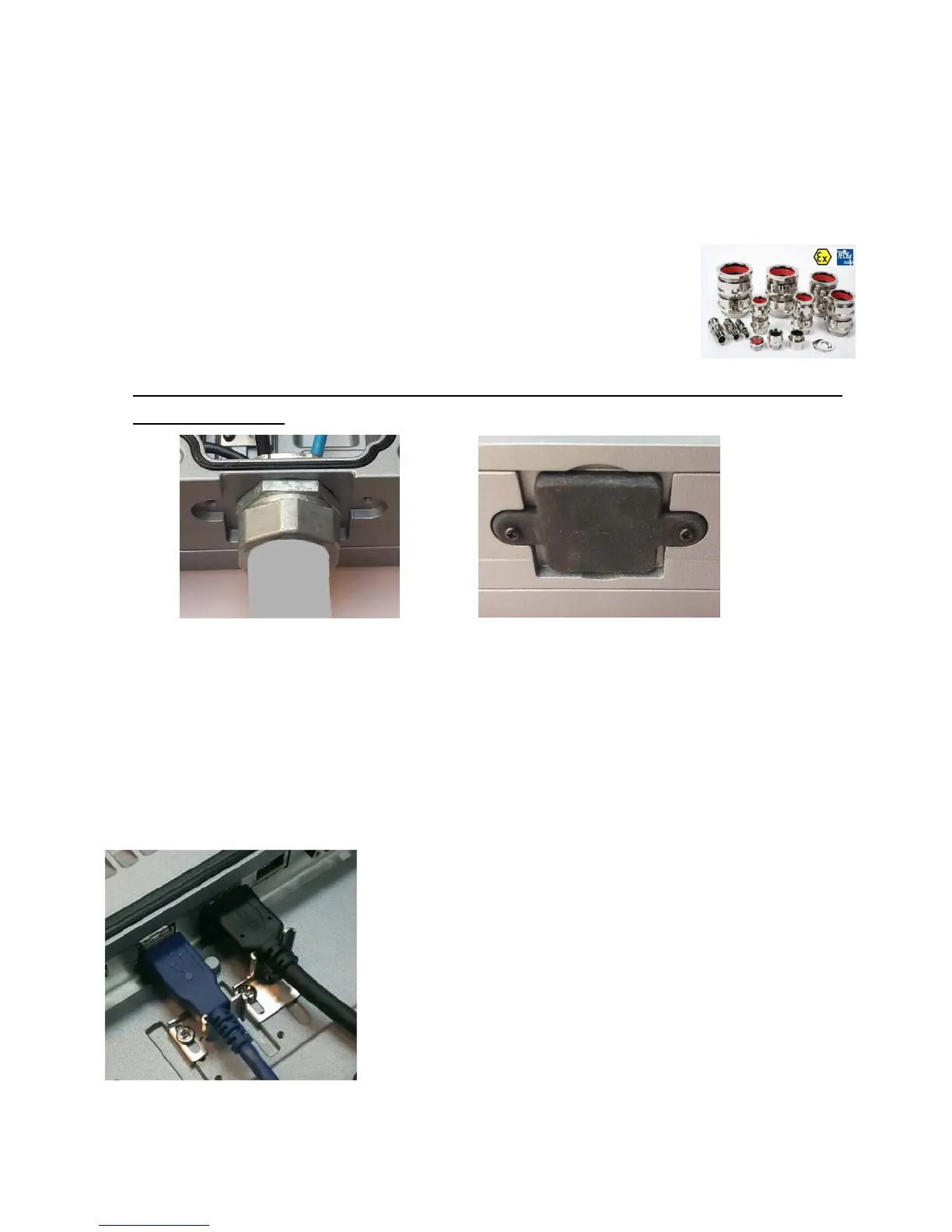

Mounting and Cable Fittings:
Safe Area Cable Connections
TheTouchMix®XIcomputerallowsforcableconnectionstoasafeareaviaaconduitattachedto
thehousing.
 For USA & Canadian installations, the computer housing provides a single
conduit opening able to accept a standard "Ex" certified conduit fitting.
 For ATEX/IECEx installations any suitable ATEX/IEC approved cable gland is
to be used.
NOTE:Itistheinstaller’sresponsibilitytodeterminehowconnectionsaremadeandcomply
withalllocalcodes.
  
Making Connections:
Tomaintainsafeinstallationconditions,ALLconnectionsmustbemadeinaccordancewiththe
InstallationControlDrawingsandlocalcodesprovidedinthismanual.
Internalconnectorsmustbesecuredwithprovidedscrewsandretainingbrackets(seebelow)

Bracketinstallation:
Pushbracketstightlyagainstconnector,installandtighten
downscrew,tokeepconnectorsecure.





Advantech TouchMix XI Specifications

Power

input voltage	12VDC
current	3.7A

Ports & Interfaces

USB 2.0 ports	5
RS-232 serial port	1
LAN port	1GB
HDMI port	1

Weight and Dimensions

dimensions	390mm x 314mm x 60mm
weight	6 kg
