XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 32

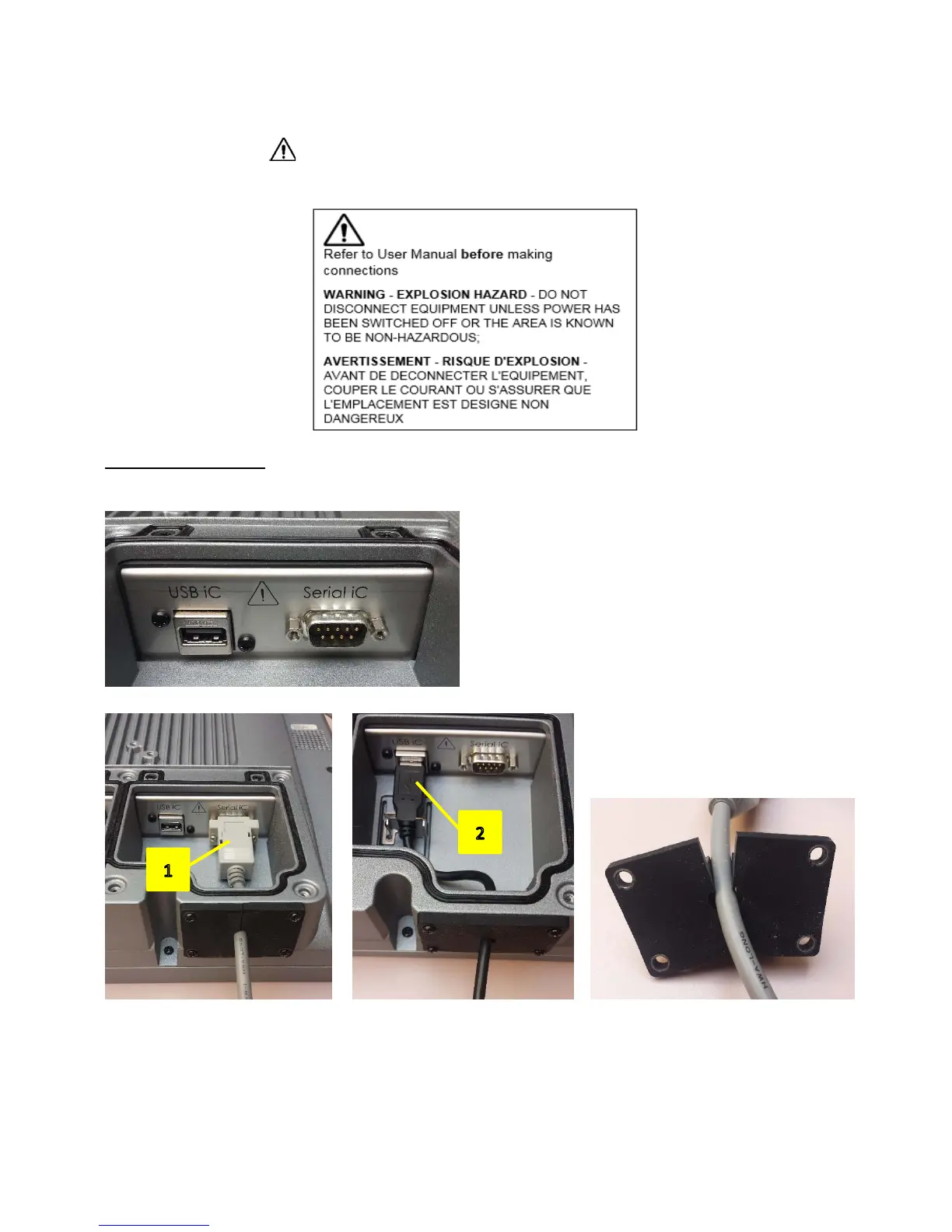

ENERGY LIMITED (Hazardous Area) Connections
"Non‐lncendiveFieldWiringConnectionsforClassI,Division2,Group(s)"
ALLportsmarkedwithMUSTcomplywiththeEntityParametersprovidedinthetablesbelow.


Internalconnections:
InternalenergylimitedUSBandSerialtobeusedONLYforhazardouslocationapprovedscales.












SericalconnectionUSBconnectionUsethesuppliedcoverwithhole

