TouchMix
®
XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 39
Closing Back Cover
Once all of the connections have been made, reseat the Back cover and secure with all
eight (8) retaining screws held in the cover.

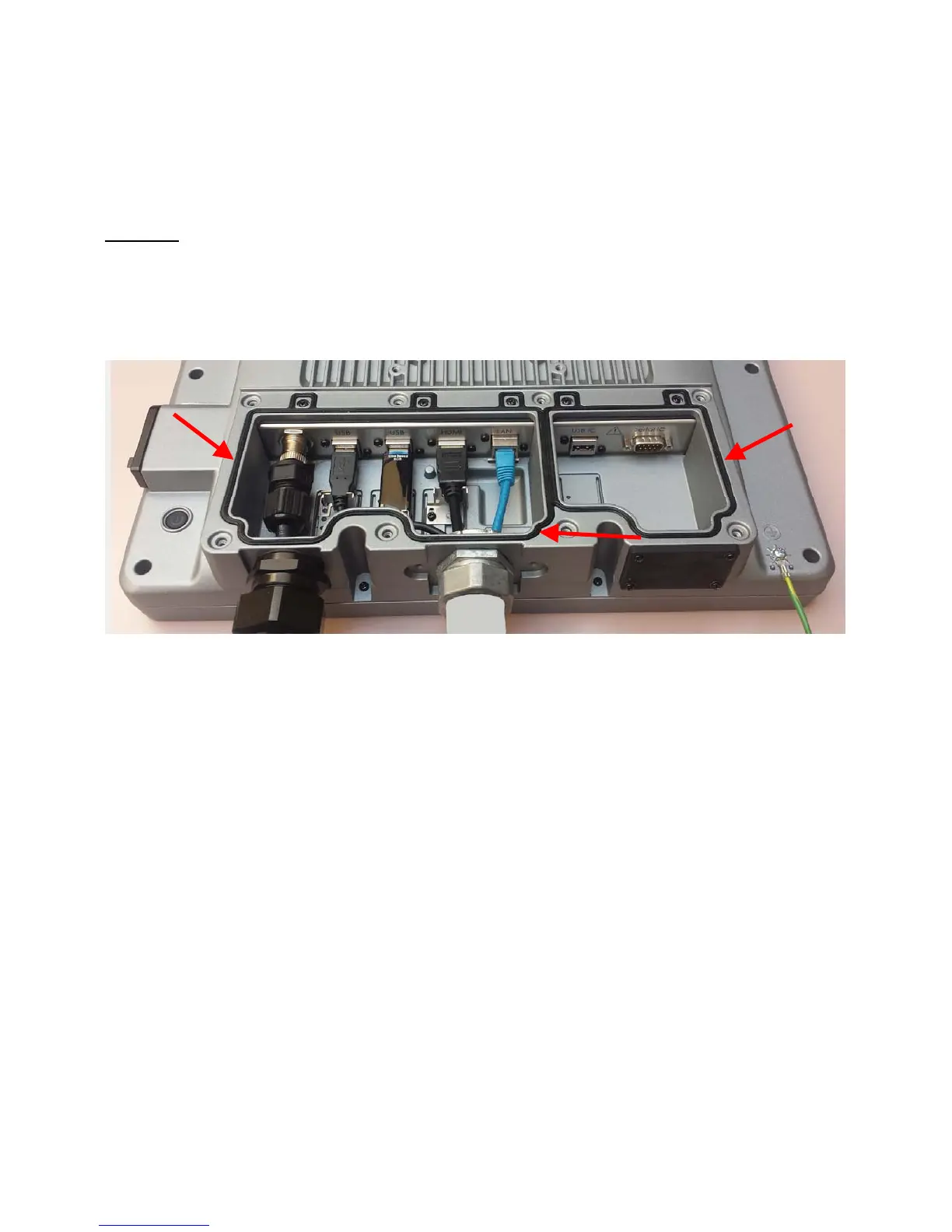

Caution: Before closing, check that the Back cover seal is fully seated into groove
around both connection areas. This seal is attached at the factory and should not
require readjustment under normal use.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Advantech TouchMix XI and is the answer not in the manual?

Advantech TouchMix XI Specifications

Power IconPower
input voltage12VDC
current3.7A
Ports & Interfaces IconPorts & Interfaces
USB 2.0 ports5
RS-232 serial port1
LAN port1GB
HDMI port1
Weight and Dimensions IconWeight and Dimensions
dimensions390mm x 314mm x 60mm
weight6 kg
