Advantech TouchMix XI User Manual

TouchMix
®
XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 28

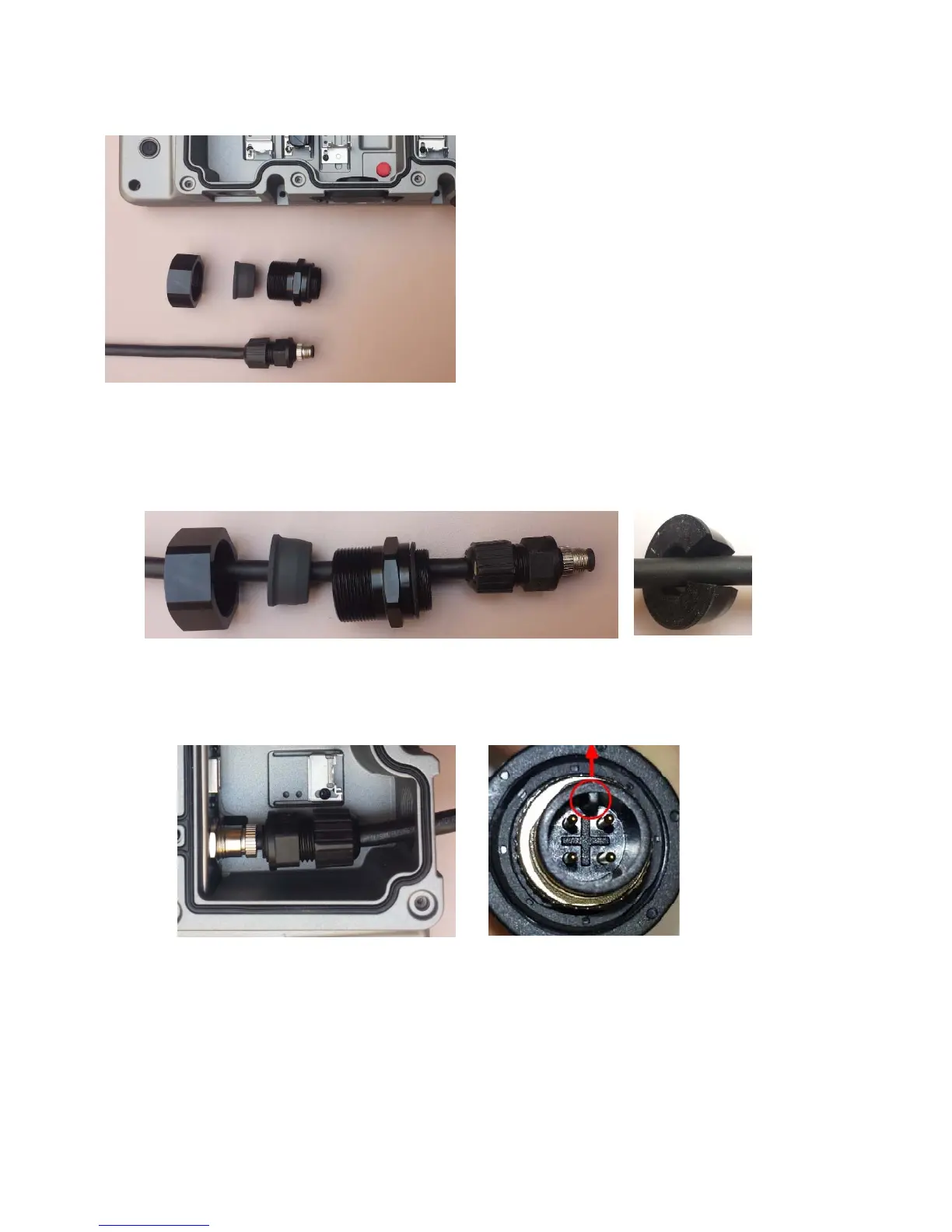

Step2–Preparepowercableandcableglandcomponentsasillustrated.Makesurethepower
cableisorientedtohavethecorrectconnectorasshown.


Step3–Slippowercableintoglandpartsintheordershown.Startwiththenut,thenslipthe
rubbersealont ocablebyspreadingopentheslitintherubberpieceandslideovercable,then
sliponthethreadedfitting(sealtowardsconnector).






Step4–SlidePowerconnectorintothecomputerhousingasshown.Usecaretoalignconnector
keywheninserting(keyfacinguptowardsinstaller).Securebytighteningthenut.










Advantech TouchMix XI Specifications

Power

input voltage	12VDC
current	3.7A

Ports & Interfaces

USB 2.0 ports	5
RS-232 serial port	1
LAN port	1GB
HDMI port	1

Weight and Dimensions

dimensions	390mm x 314mm x 60mm
weight	6 kg
