2.1 Introduction
The following figures show the connectors on UNO-2271G. The following sections
give you information about each peripheral.

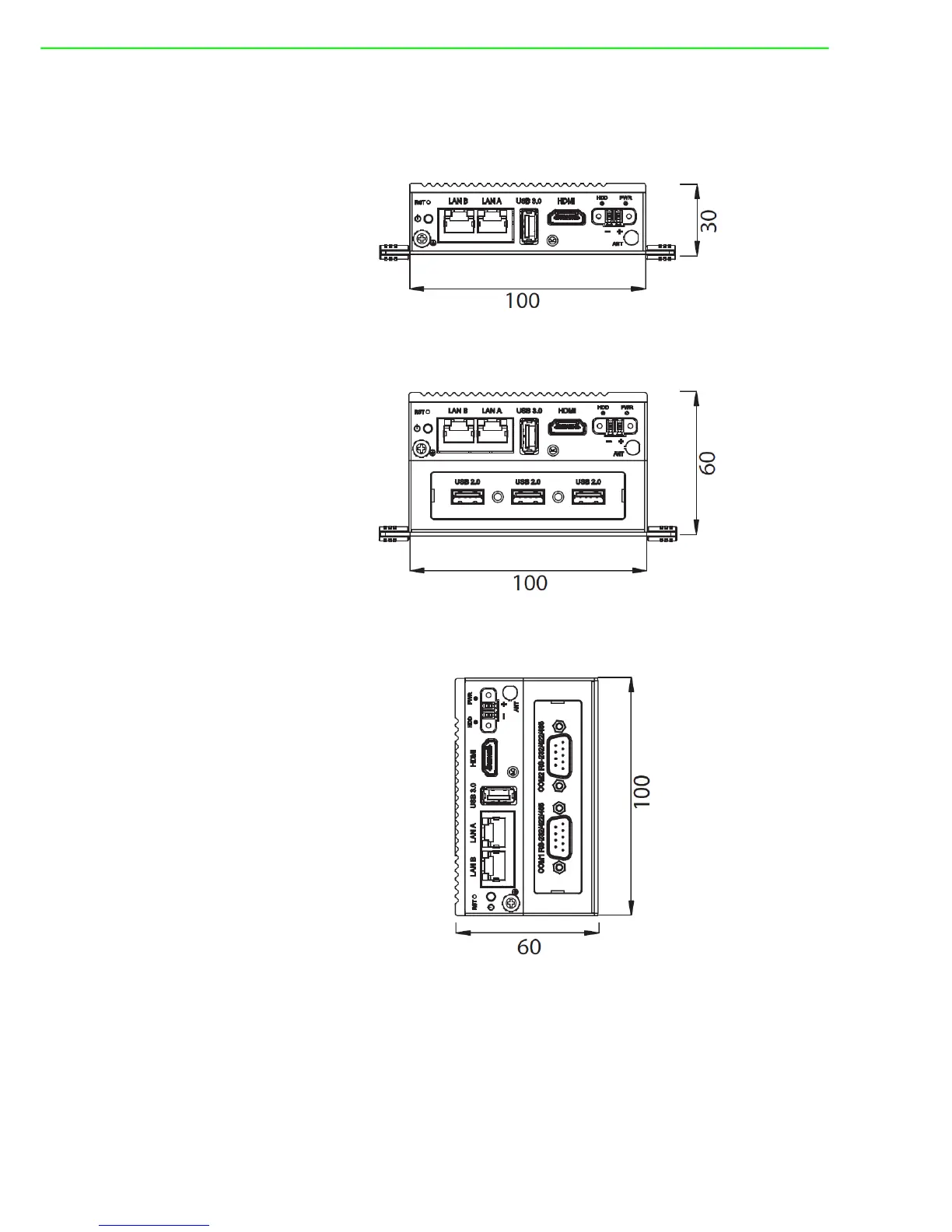

Figure 2.1 Front Panel of UNO-2271G-E21AE for one stack model which can
support extra extension kit UNO-2271G-EKAE
Figure 2.2 Front Panel of UNO-2271G-E22AE for two stack model which can
support extra 3 x USB and iDoor module
Figure 2.3 Front Panel of UNO-2271G-E23AE for two stack model which can
support extra 2 x COM port and iDoor module
