Advantech UNO-2271G - Power Connector (PWR); USB Connector

13 UNO-2271G User Manual
Appendix A System Settings and Pin Assignments

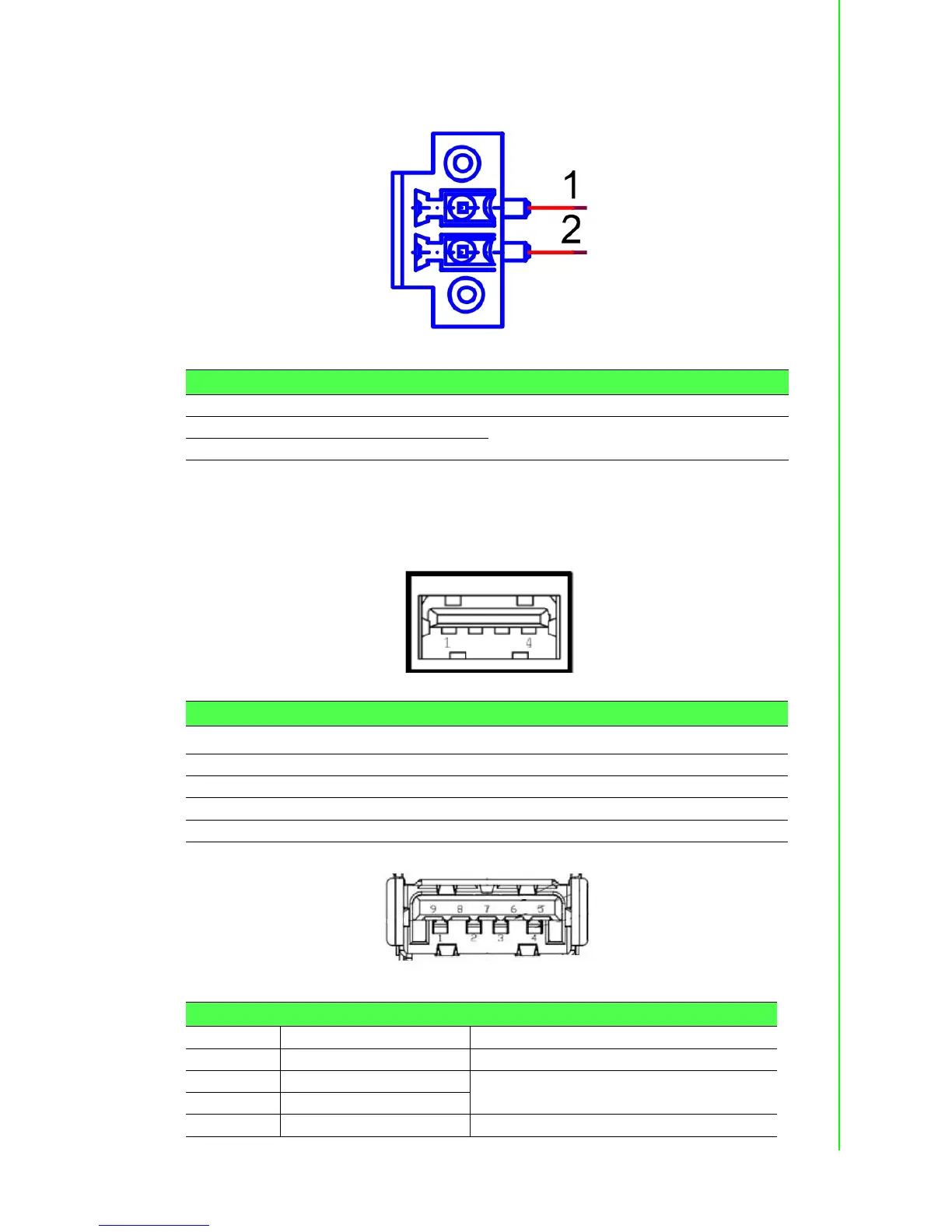

A.3 Power Connector (PWR)
A.4 USB Connector
Table A.3: Power connector pin assignments
Pin Signal Description
1 Power IN V+
10 ~ 30V
DC
2 Power IN V- (GND)
Table A.4: USB 2.0 Connector Pin Assignments
Pin Signal Name Cable Color
1 VCC Red
2 DATA- White
3 DATA+ Green
4 GND Black
Table A.5: USB 3.0 Connector Pin Assignments
Pin Signal Name Description
1 VBUS Power
2D-
USB2.0 differential pair
3D+
4 GND Ground for power return
