UTC-318 User Manual 32

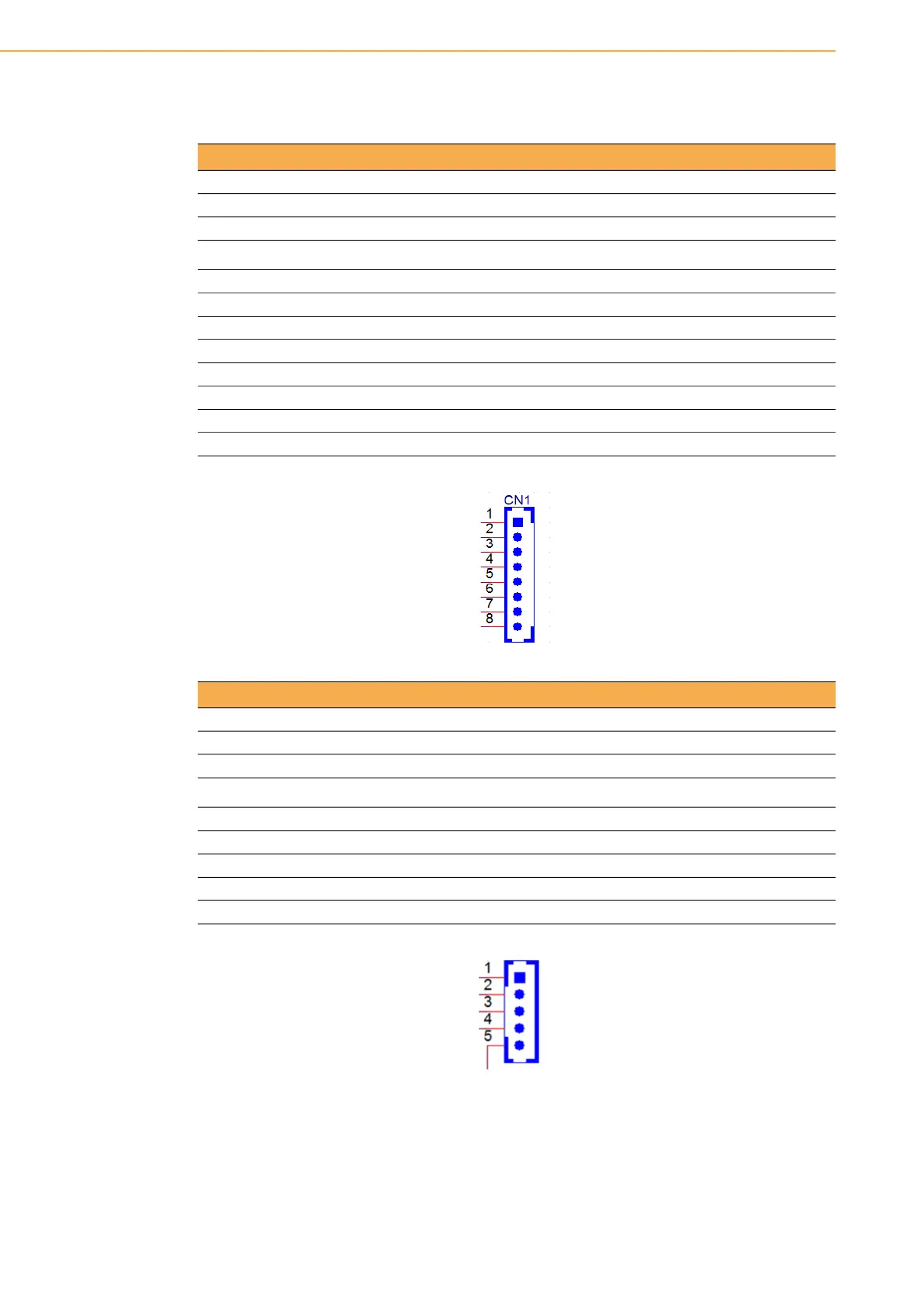

A.1 Pin Assignments
Table A.1: CN1(DE),CN2(FGH):Back Light
Part Number 1655004512-01
Footprint WF_8P_49_BOX_D
Description WAFER BOX 8P 1.25mm 180D(M) DIP A1251WV0-8P
Pin Pin name
1 +12V_INVERTER
2 +12V_INVERTER
3 GND
4 GND
5 BKLT_EN
6 BRIGHT1
7 +12V_INVERTER
8 GND
Table A.2: CN3(D):Internal USB
Part Number 1655000453
Footprint WHL5V-2M-24W1140
Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin Pin name
1 +5V
2 D-
3 D+
4 GND
5 GND
