33 UTC-318 User Manual

Appendix A Pin Assignments

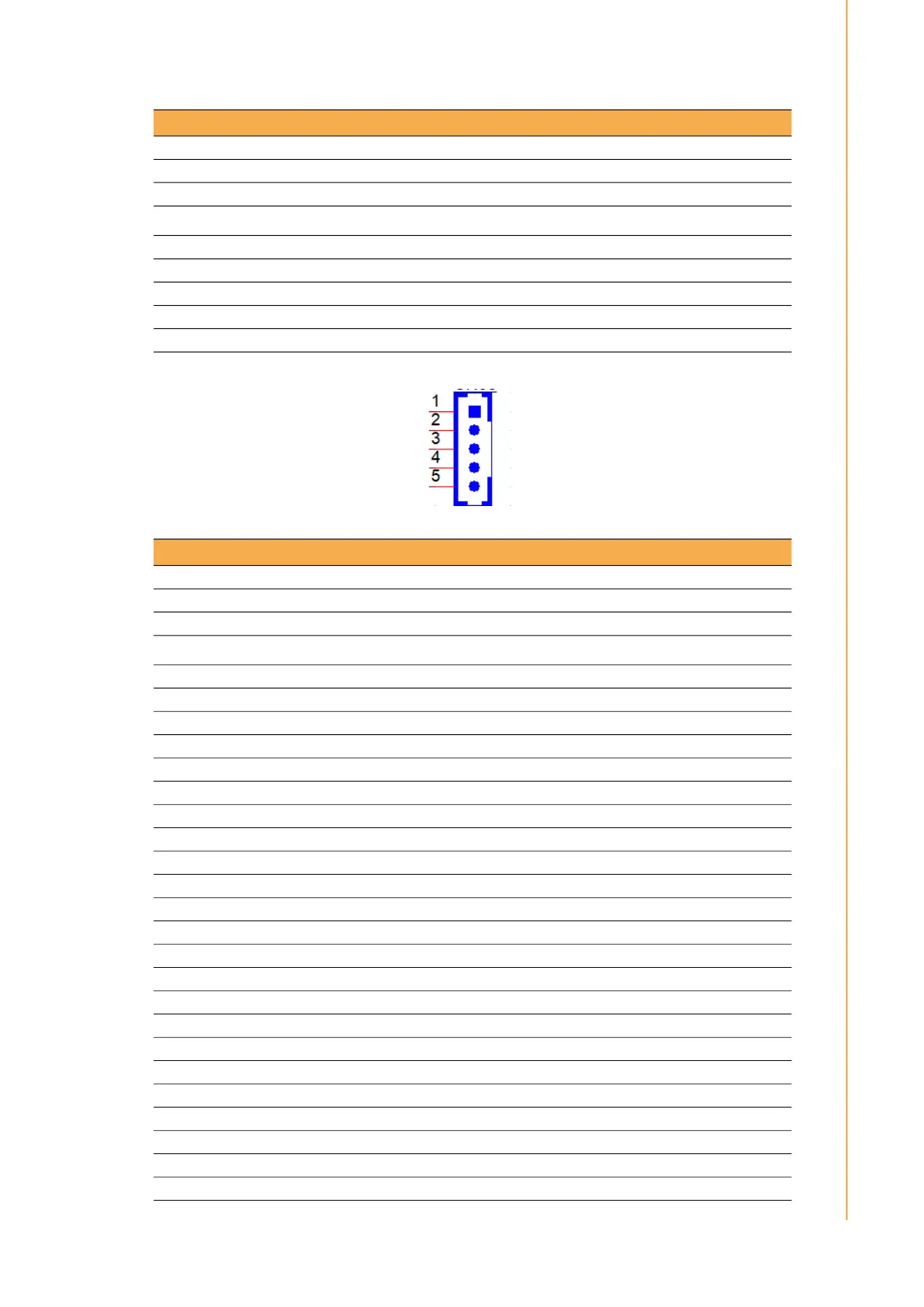

Table A.3: CN38(H),CN39(H):Internal USB

Part Number 1655305020

Footprint WHL5V-2M

Description WAFER BOX 2.0mm 5P 180D(M) DIP A2001WV2-5P

Pin Pin name

1 +5V

2 D-

3 D+

4 GND

5 GND

Table A.4: CN4(DEFG):LVDS

Part Number 1653920200

Footprint SPH20X2

Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91)

Pin Pin name

1 +3.3V or +5V

2 +3.3V or +5V

3 GND

4 GND

5 +3.3V or +5V

6 +3.3V or +5V

7 LVDS0_D0-

8 LVDS1_D0-

9 LVDS0_D0+

10 LVDS1_D0+

11 GND

12 GND-

13 LVDS0_D1-

14 LVDS1_D1-

15 LVDS0_D1+

16 LVDS1_D1+

17 GND

18 GND

19 LVDS0_D2-

20 LVDS1_D2-

21 LVDS0_D2+

22 LVDS1_D2+-

23 GND

Advantech UTC-318 User Manual
