Appendix A Pin Assignments

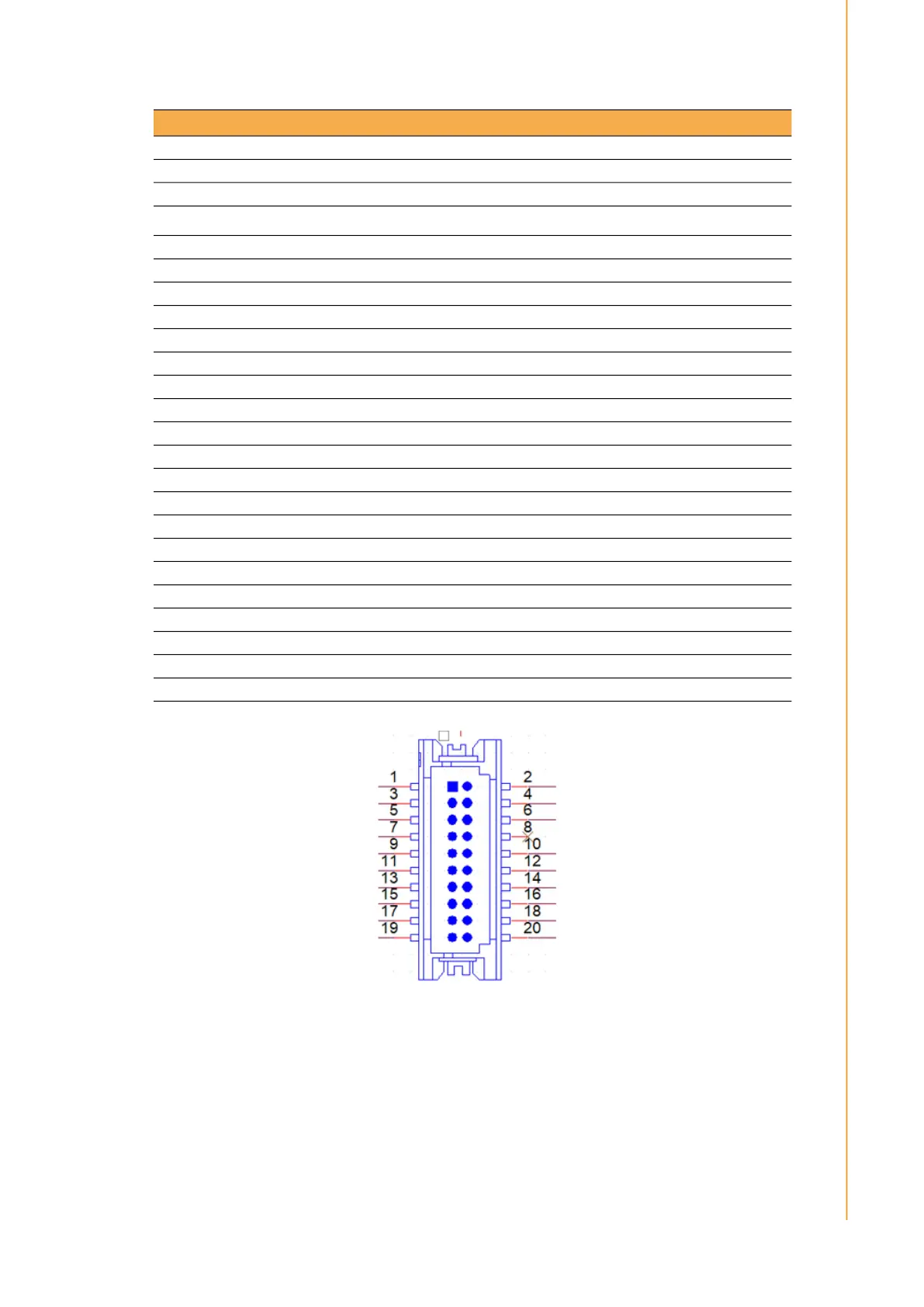

Table A.6: CN5(D),CN3(EF),CN9(H):eDP
Part Number 1653006914-01
Footprint WB10x2P-S1.25
Description WTB 2x10P 1.25mm 180D(M) SMD W/P DF13E-20DP-1.25
Pin Pin name
1 GND
2 GND
3 TXN0
4 TXN3
5 TXP0
6 TXP3
7 GND
8 NC
9 TXN1
10 GND
11 TXP1
12 AUX-
13 GND
14 AUX+
15 TXN2
16 GND
17 TXP2
18 HPD
19 LCD_POWER
20 LCD_POWER
