Advantech UTC-318 User Manual

UTC-318 User Manual 38

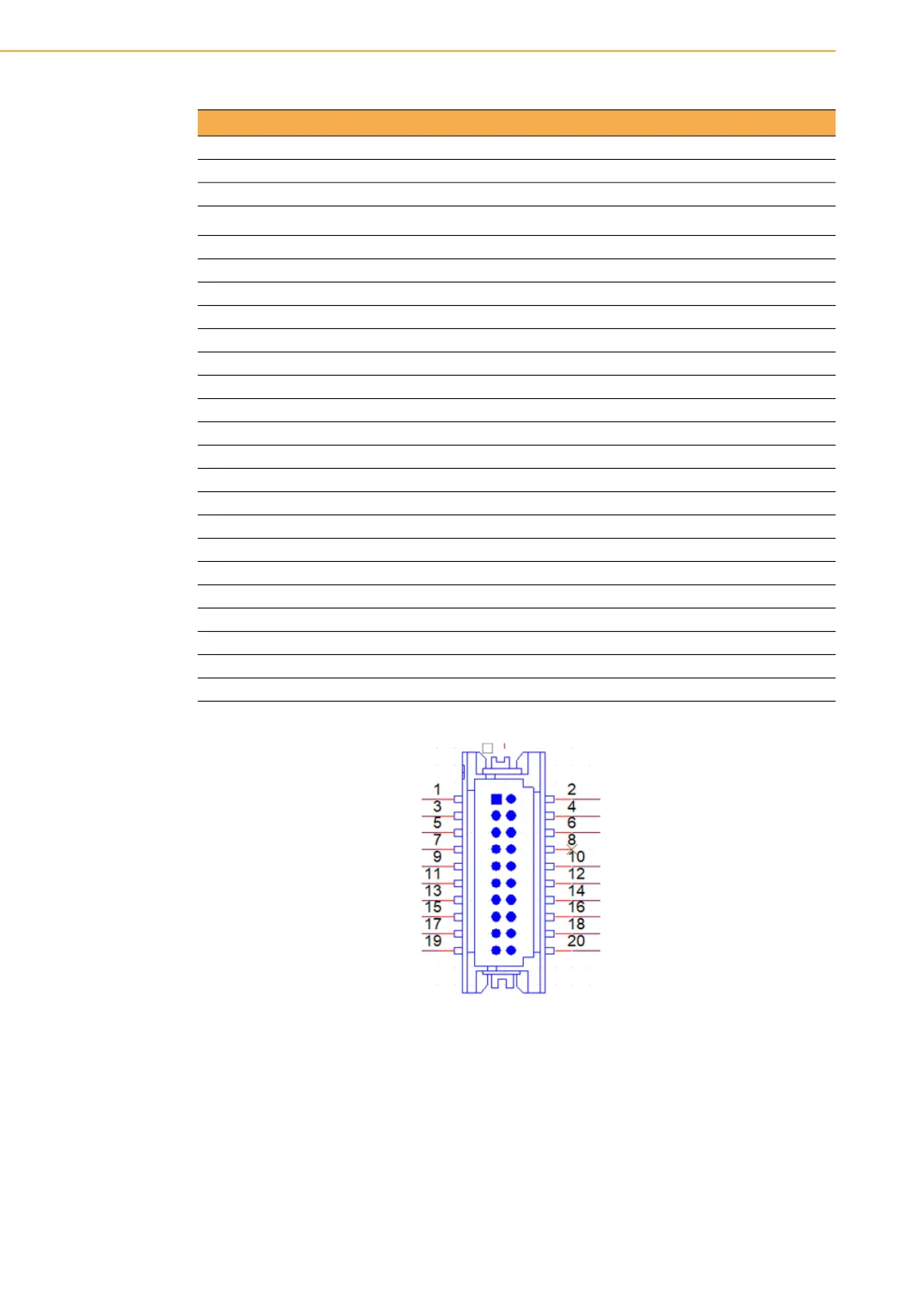

Table A.7: CN3(G) eDP
Part Number 1653006914-01
Footprint WB10x2P-S1.25
Description WTB 2x10P 1.25mm 180D(M) SMD W/P DF13E-20DP-1.25
Pin Pin name
1 +5V_LCD
2 +5V_LCD
3 TXN0
4 GND
5 TXP0
6 TXN3
7 GND
8 TXP3
9 TXN1
10 GND
11 TXP1
12 AUX-
13 GND
14 AUX+
15 TXN2
16 GND
17 TXP2
18 HPD
19 +V3.3_LCD
20 +V3.3_LCD
