39 UTC-318 User Manual
Appendix A Pin Assignments

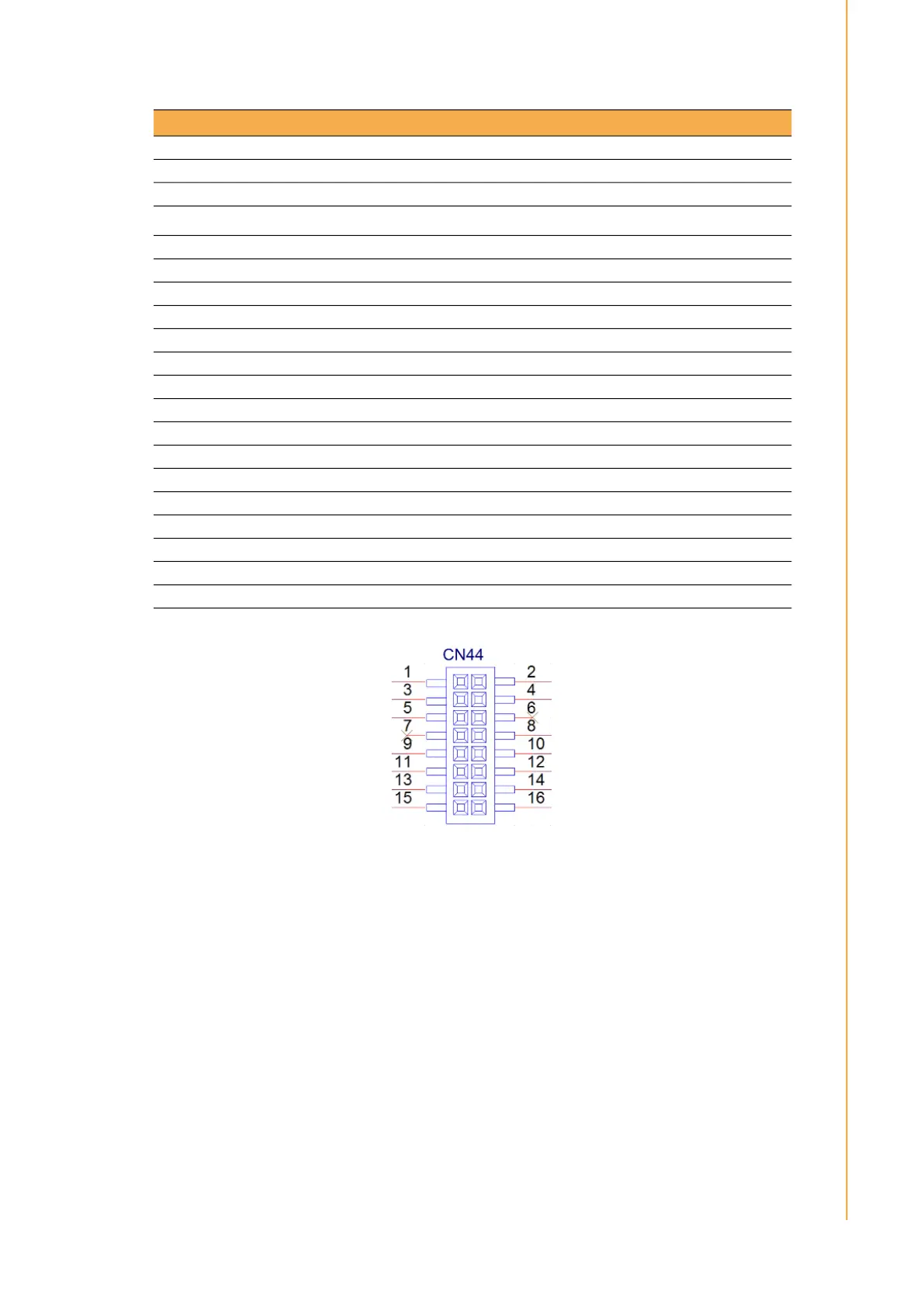

Table A.8: CN11(DF),CN10(G) VGA
Part Number 1653208260
Footprint HD_8x2P_79_BOX
Description BOX HEADER 8x2P 2.00mm 180D(M) SMD 23N6850
Pin Pin name
1 VGA_R
2 +5V
3 VGA_G
4 GND
5 VGA_B
6 NC
7 NC
8 VGA_DDAT
9 GND
10 VGA_HS
11 GND
12 VGA_VS
13 GND
14 VGA_DCLK
15 GND
16 GND
