Advantech UTC-318 User Manual

UTC-318 User Manual 40

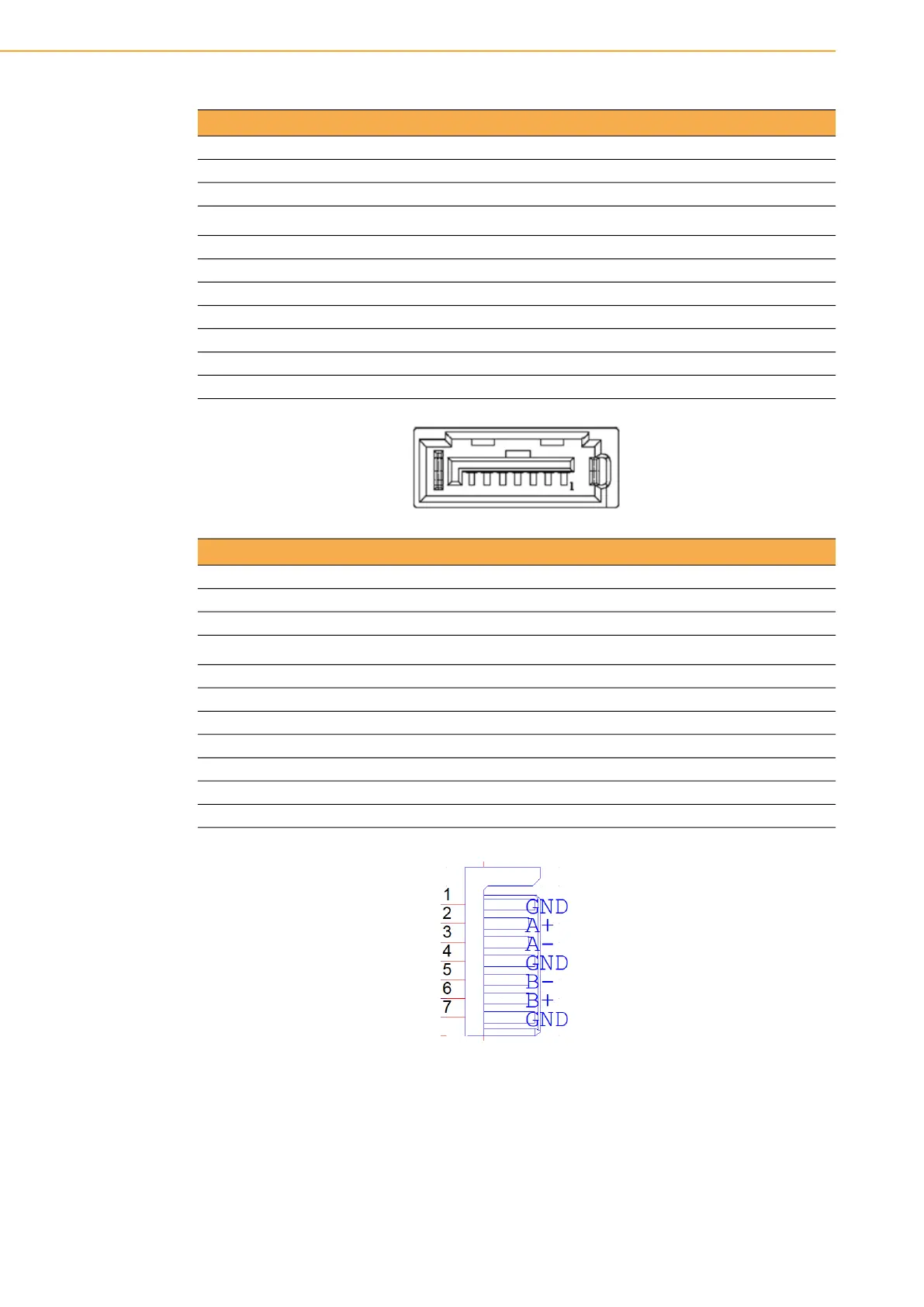

Table A.9: SATA(DEFG):SATA
Part Number 1654004659
Footprint WF_5P_98_BOX_D
Description WAFER BOX 5P 2.5mm 180D(M) DIP 2503-WS-5
Pin Pin name
1 GND
2 TX+
3 TX-
4 GND
5 RX+
6 RX-
7 GND
Table A.10: SATA1(H):SATA
Part Number 1654013471-01
Footprint sata_7p_watm-07dbn4a3b8uw_d
Description SATA 7P/1.27mm/(F)/NY46/VA/G15u/D/BK/H8.45mm
Pin Pin name
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
