41 UTC-318 User Manual
Appendix A Pin Assignments

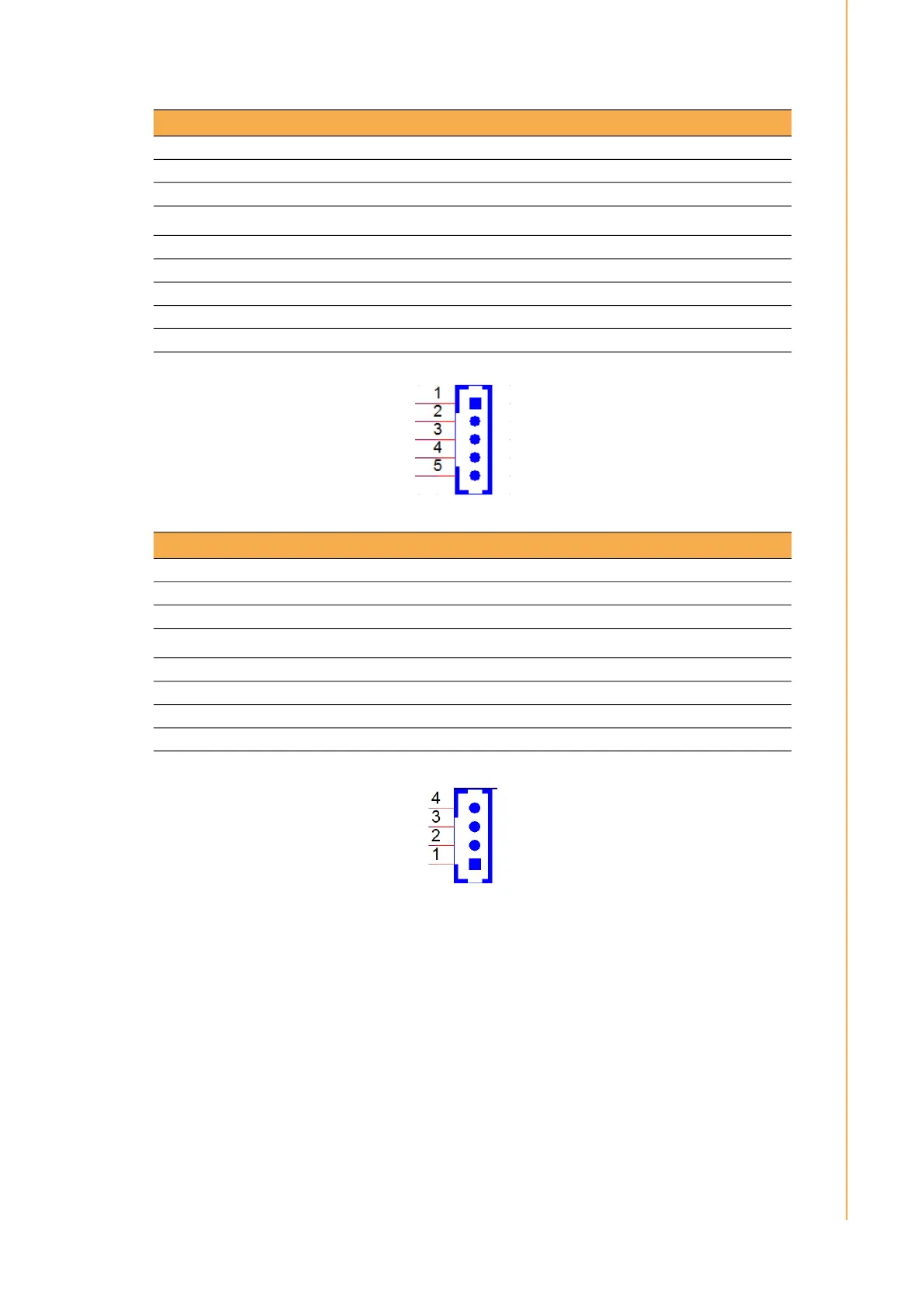

Table A.11: CN7(D),CN3(EFG),CN25(H):SATA POWER
Part Number 1659254005
Footprint SATA_7P_WATM-07DBN4A3B8UW_D
Description Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8
Pin Pin name
1 +3.3V
2 GND
3 +5V
4 GND
5 +12V
Table A.12: CN23(H):SATA LED
Part Number 1655000170
Footprint WF_4P_49_BOX_R1_D
Description WAFER 1.25mm 4P 180D DIP A1251WV0-4P
Pin Pin name
1 +5VSB
2 +5V
3 SATA0_LED
4 GND
To Next Page
