UTC-318 User Manual 42

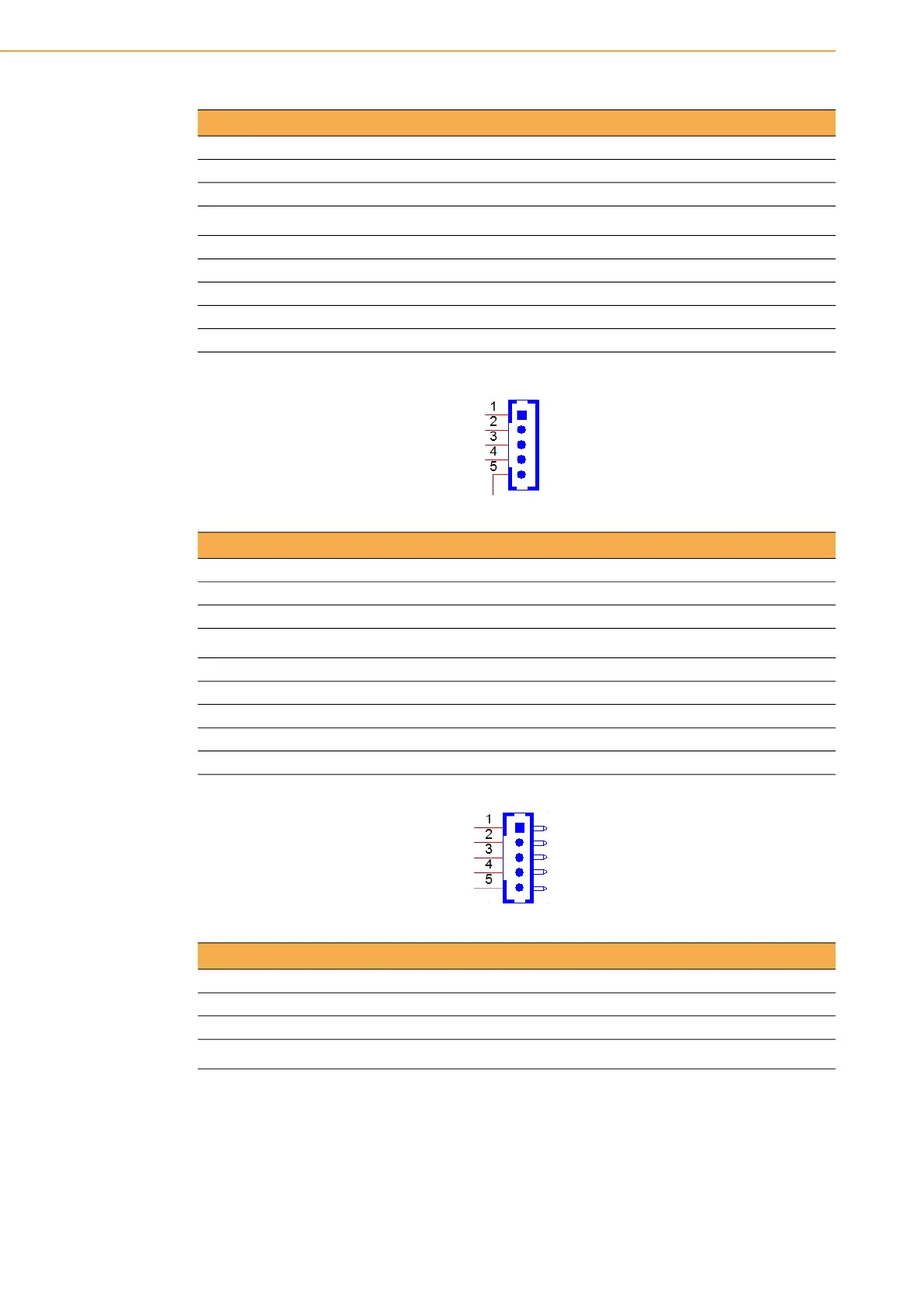

Table A.13: CN8(D),CN5(G):Internal USB
Part Number 1655000453
Footprint WHL5V-2M-24W1140
Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin Pin name
1 +5V
2 D-
3 D+
4 GND
5 GND
Table A.14: CN9(D),CN6(EG),CN26(F),CN41(H):Touch
Part Number 1655005110
Footprint WF_5P_100_RA_D
Description WAFER 5P 2.54mm 90D(M) DIP 2542-WR-5
Pin Pin name
1 Y+
2 Y-
3 SENSE
4 X+
5 X-
Table A.15: CN13(D),DIMM(EG):DDR3L SODIMM
Part Number 1651002087-11
Footprint DDR3_204P_AS0A626-N2S6-7H
Description DDR3 SODIMM H=5.2mm STD 204P SMD AS0A626-H2S6-7H
Pin Pin name
To Next Page
