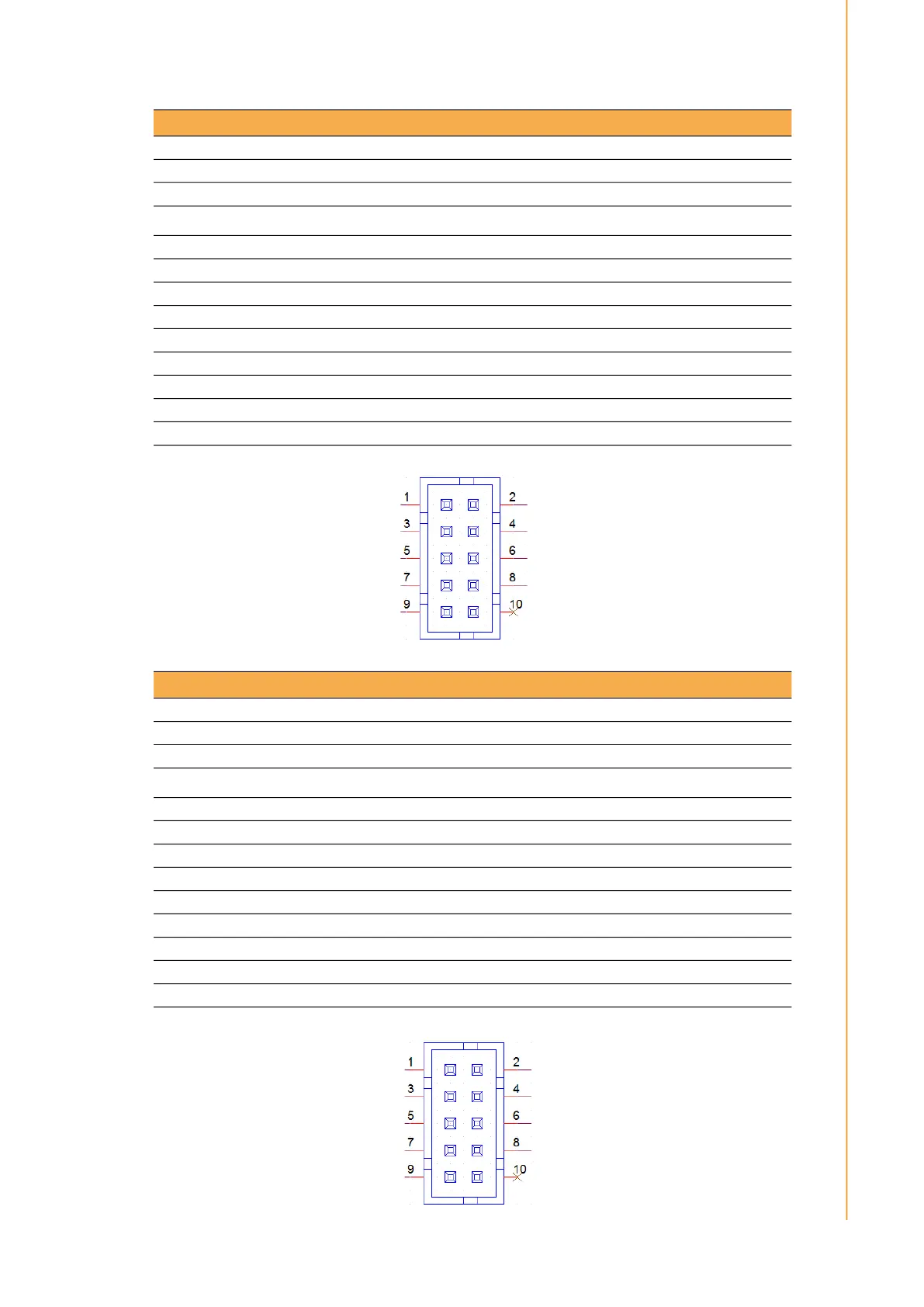

Appendix A Pin Assignments
Table A.19: CN14(D),CN10(F),CN7(GH):COM4
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 DCD
2 RXD
3 TXD
4 DTR#
5 GND
6 DSR#
7 RTS#
8 CTS#
9 RI#
Table A.20: CN15(D) ,CN12(F),CN9(G),CN96(H):COM3
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 DCD
2 RXD
3 TXD
4 DTR#
5 GND
6 DSR#
7 RTS#
8 CTS#
9 RI#
