Advantech UTC-318 User Manual

UTC-318 User Manual 48

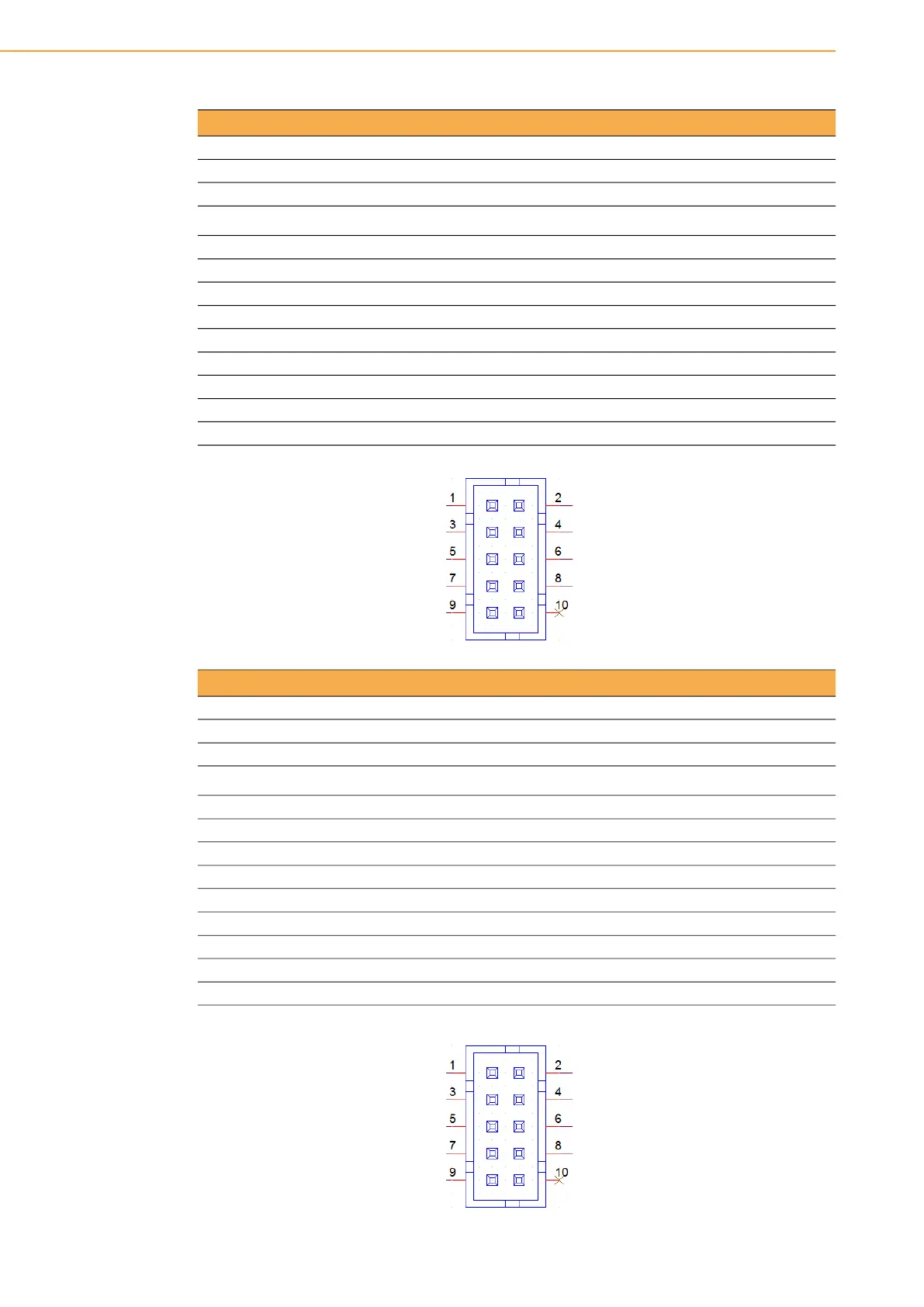

Table A.21: CN11(E):CSAFE
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 LINE_IN1_L
2 LINIE_IN1_R
3 COM3_ RX+
4 COM3_TX
5 V_CSAFE
6 COM3_CTS#
7 GND
8 GND
9
Table A.22: CN16(D),CN13(E),CN14(F),CN11(G),CN44(H):COM2
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 422/485 TX-
2 422/485 TX+
3 422 RX+
4 422 RX-
5 GND
6 DSR#
7 RTS#
8 CTS#
9 RI#
