UTC-318 User Manual 52

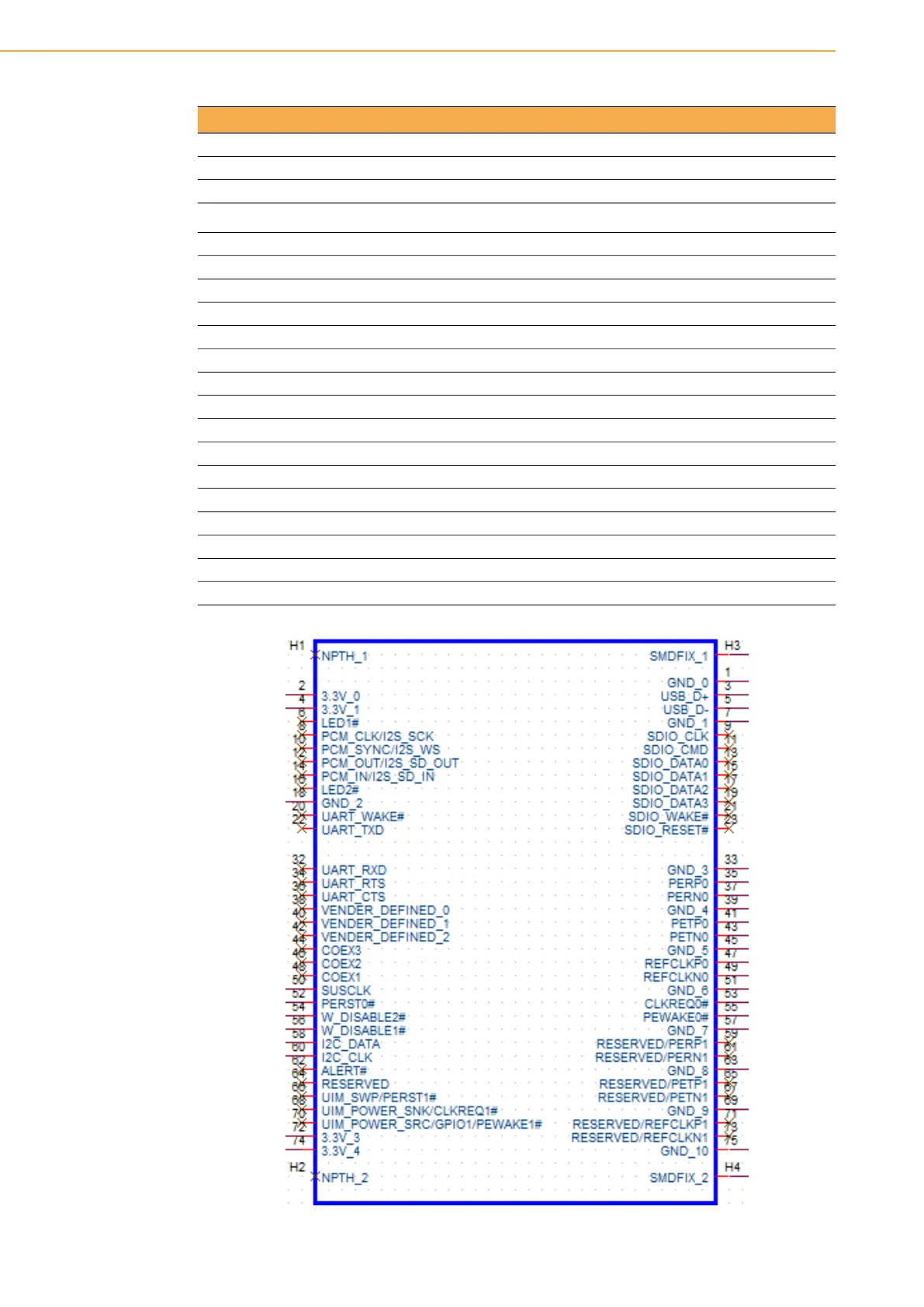

Table A.27: CN16(H):M.2_2230
Part Number 1654013690-01
Footprint NGFF_75P_APCI0085-P003A
Description NGFF 75P/0.5/F/LCP+40GF/RA/G10u/S/BK/H3.0/E Key
Pin Pin name
1,7,18,33,39,45 GND
51,57,63,69,75,H4 GND
57,71,73,75,H3,H4 GND
2,4,72,74 3.3V
50 SUSCLK_z_EKEY
54 BT_DISABLE#
56 WIFI_DISABLE#
58 I2C0_KEYE_DAT
60 I2C0_KEYE_CLK
3 USB8_z_P+
5 USB8_z_P-
35 PCIE_M2_z_TX7+
37 PCIE_M2_z_TX7-
47 CLK_M2E_z_PCIE+
49 CLK_M2E_z_PCIE-
53 PCIE_a_CLKREQ2#
