55 UTC-318 User Manual
Appendix A Pin Assignments

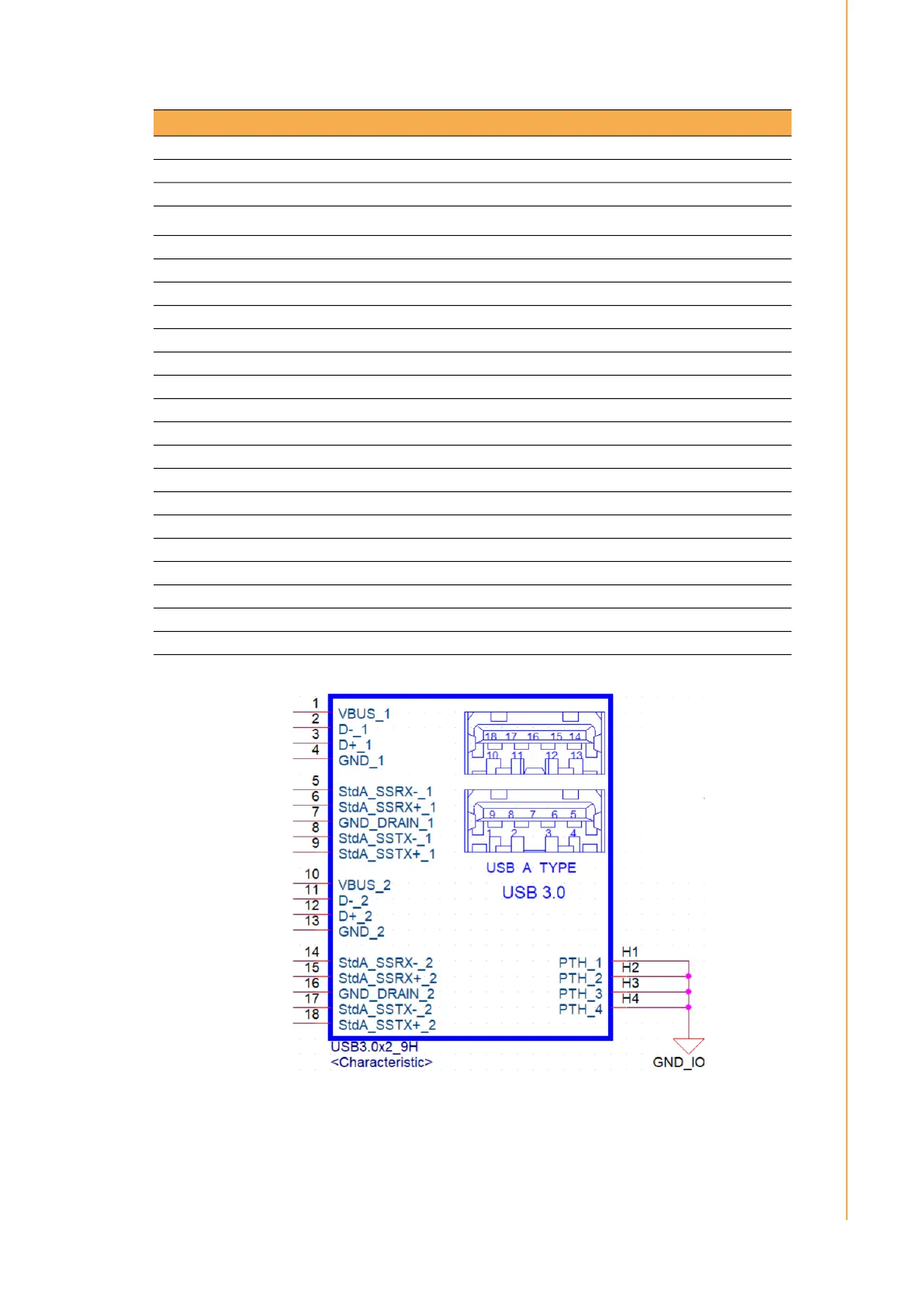

Table A.31: CN19(EF),CN21(G):External USB
Part Number 1654010969-01
Footprint USB_9x2P_UEA1112C-8HS6-4F
Description USB CONN. 18P 2.0mm 90D(F) DIP UEA1112C
Pin Pin name
1 +5V
2 D-
3 D+
4 GND
5 RX_D-
6 RX_D+
7 GND
8 TX_D-
9 TX_D+
10 +5V
11 D-
12 D+
13 GND
14 RX_D-
15 RX_D+
16 GND
17 TX_D-
18 TX_D+
