Appendix A Pin Assignments

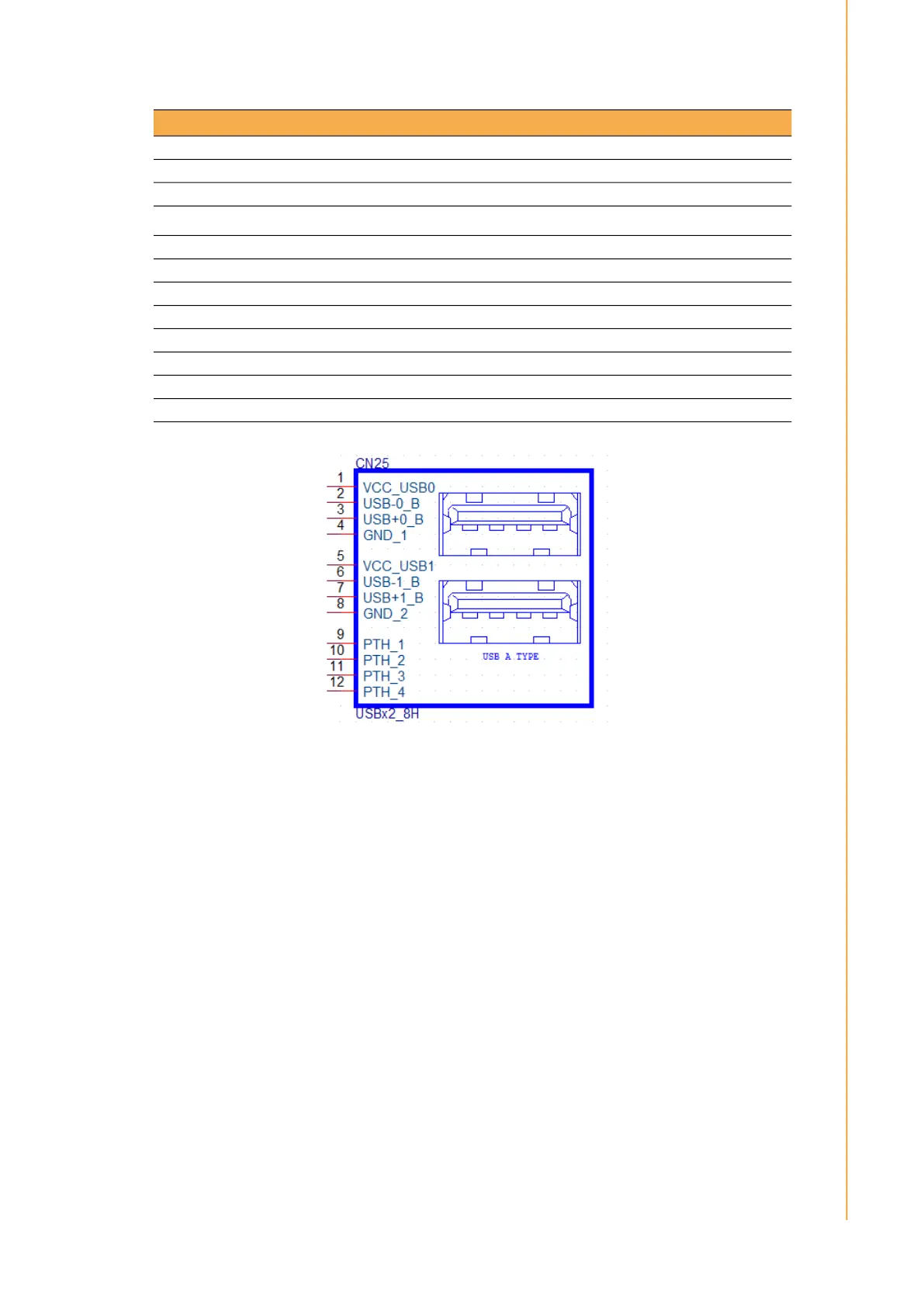

Table A.33: CN24,CN25 (D),CN18(EF),CN20(G):External USB
Part Number 1654009513
Footprint USB_8P_UB1112C-8FDE-4F
Description USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F
Pin Pin name
1 +5VSB
2 D-
3 D+
4 GND
5 +5VSB
6 D-
7 D+
8 GND
