Advantech UTC-318 User Manual

UTC-318 User Manual 58

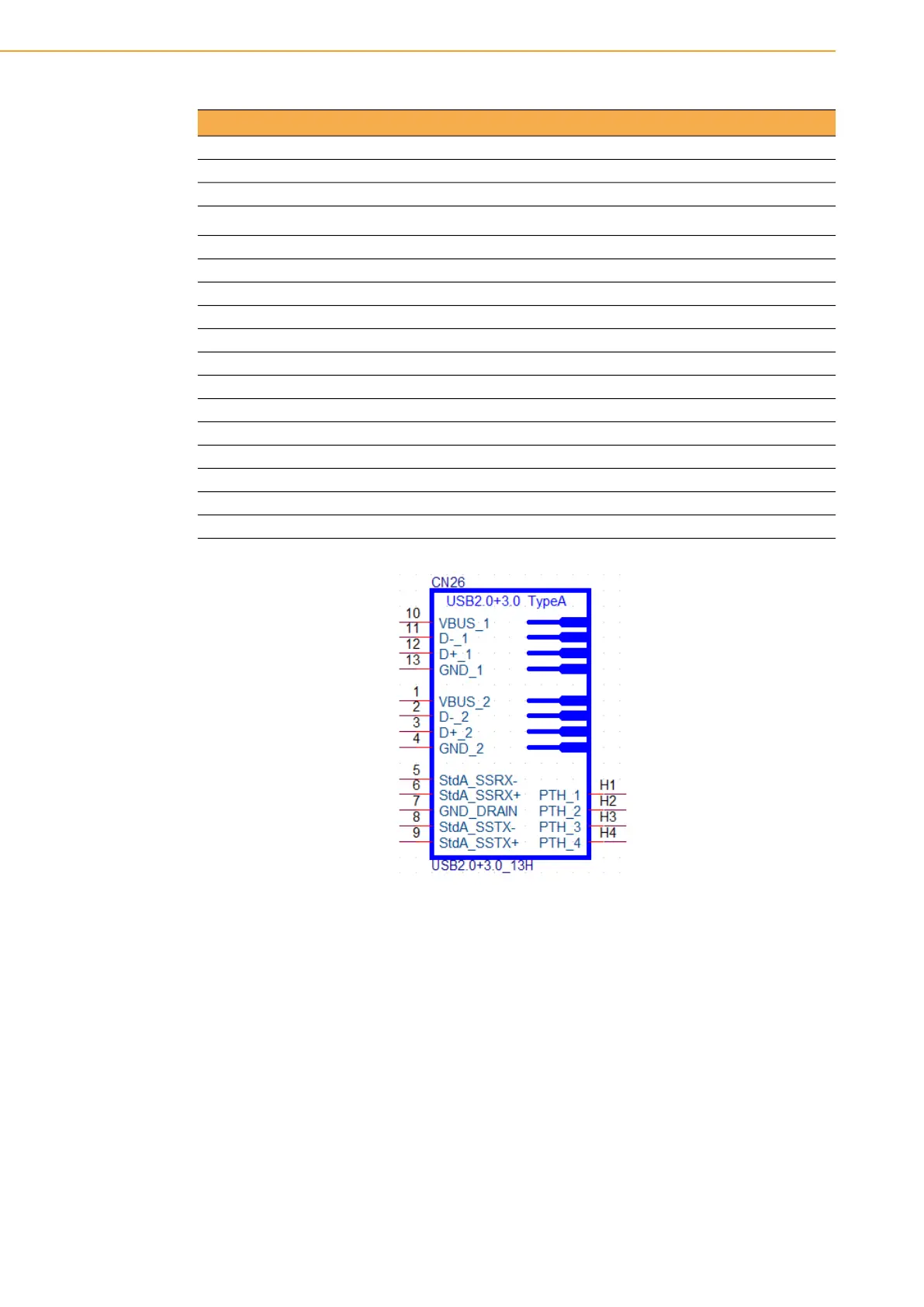

Table A.34: CN26(D):External USB
Part Number 1654010199
Footprint USB_13P_UEA1112C-UHS6-4F
Description USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4
Pin Pin name
1 +5VSB
2 D0-
3 D0+
4 GND
5 RX_D-
6 RX_D+
7 GND
8 TX_D-
9 TX_D+
10 +5VSB
11 D1-
12 D1+
13 GND
