59 UTC-318 User Manual
Appendix A Pin Assignments

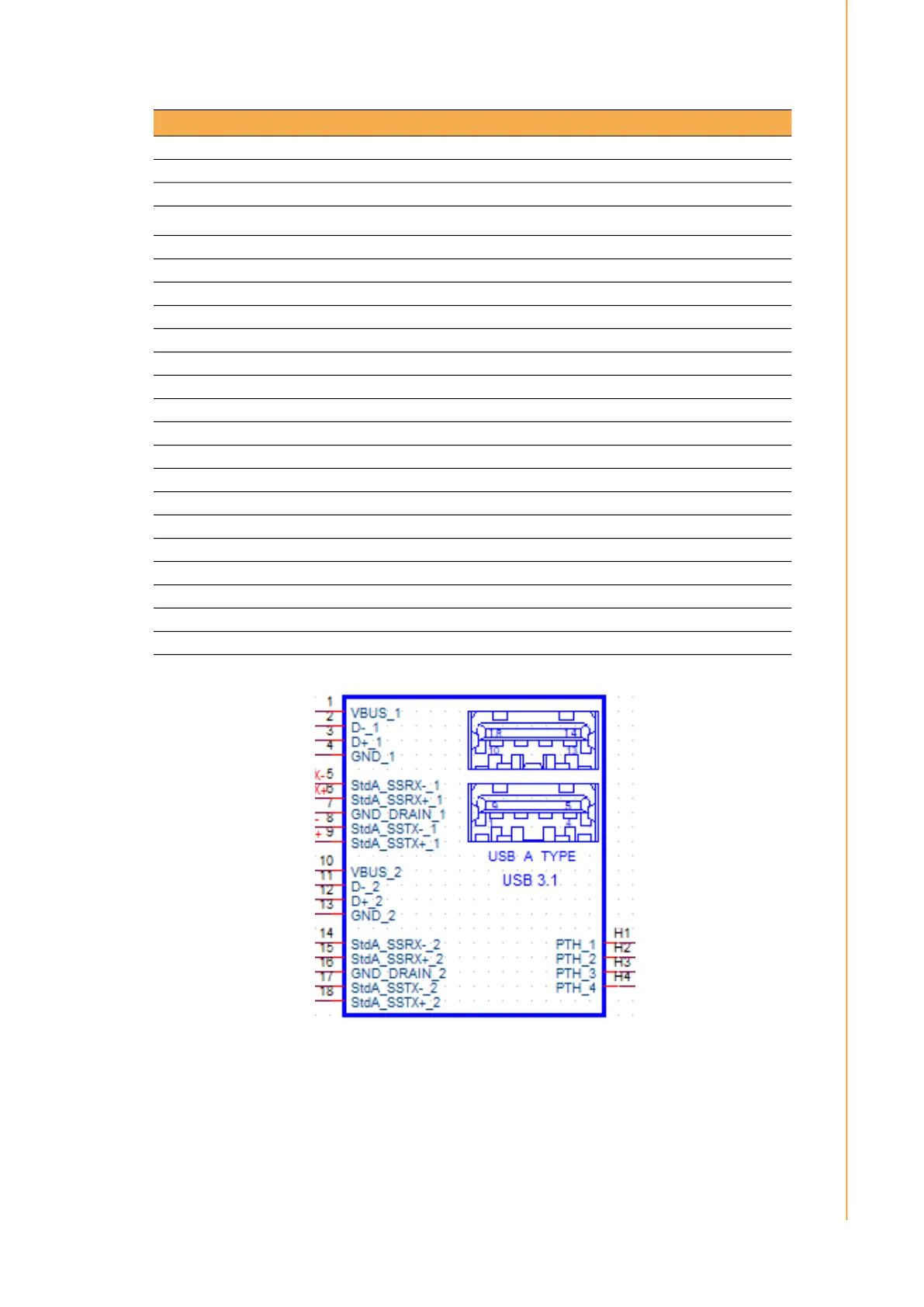

Table A.35: CN170(H),CN169(H),CN43(H):External USB
Part Number 1654013480-01
Footprint USB_9x2P_USB5-18F5-BNR0-10
Description USB 3.1 2x9P/2.0mm/PA66/(F)/RA/G30u/D/BU/H15.69
Pin Pin name
1 +5V
2 D5-
3 D5+
4 GND
5 RX-
6 RX+
7 GND
8 TX-
9 TX+
10 +5V
11 D6-
12 D6+
13 GND
14 RX-
15 RX+
16 GND
17 TX-
18 TX+
