61 UTC-318 User Manual
Appendix A Pin Assignments

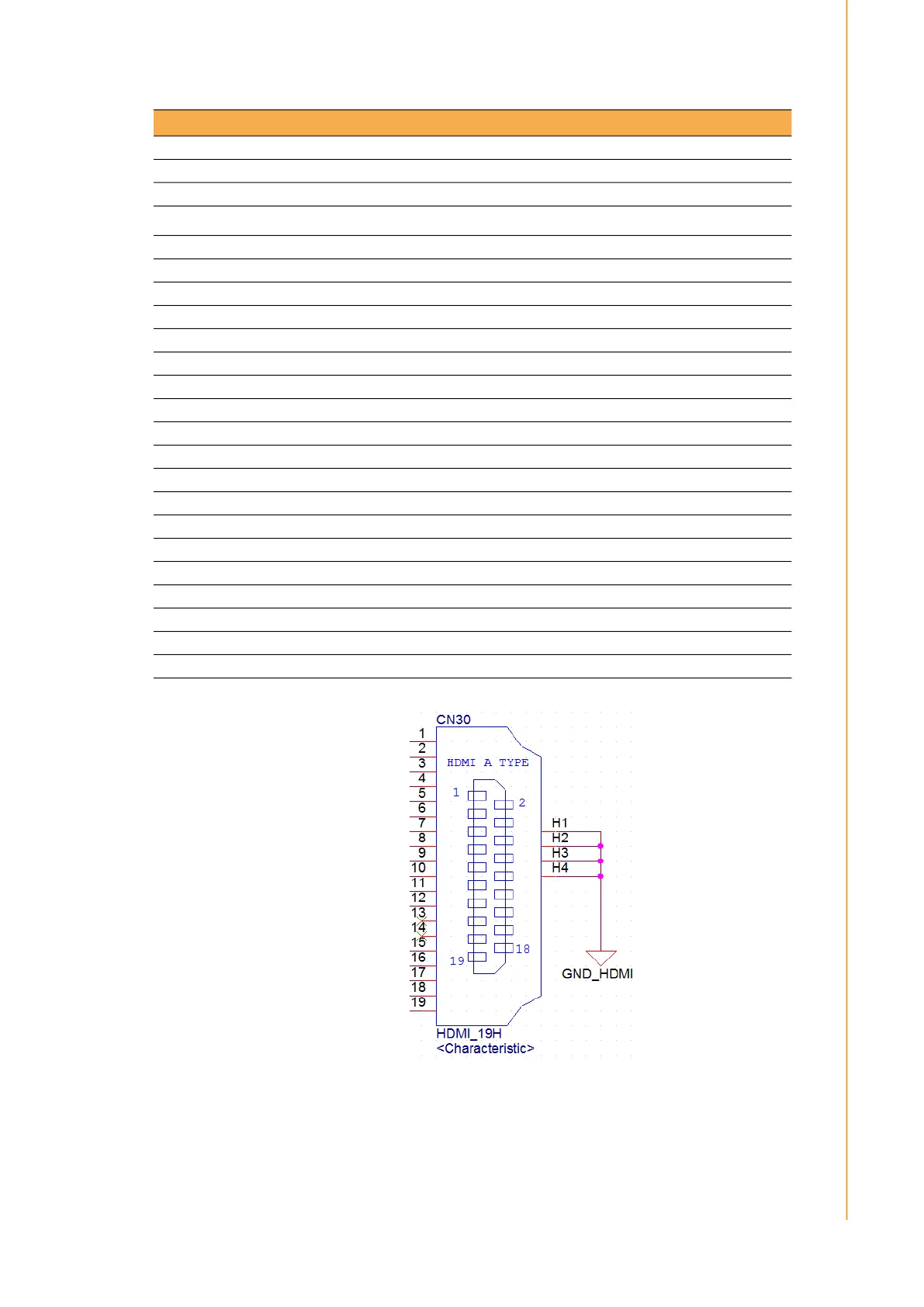

Table A.38: CN30(D),CN24(EF),CN27(G),CN15(H):HDMI
Part Number 1654011175-01
Footprint HDMI_19P_QJ51191-LFB4-7F
Description HDMI Conn. 19P 0.5mm 90D(F) SMD QJ51191-LFB4-7F
Pin Pin name
1 HDMI_TX0+
2 GND
3 HDMI_TX0-
4 HDMI_TX1+
5 GND
6 HDMI_TX1-
7 HDMI_TX2+
8 GND
9 HDMI_TX2-
10 HDMI_TX3+
11 GND
12 HDMI_TX3-
13 NC
14 NC
15 HDMI_CLK
16 HDMI_DAT
17 GND
18 +5V
19 HDMI_DET
To Next Page
